| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UKL0J472MHDCAP ALUM 4700UF 20% 6.3V RADIAL |
280 | 2.32 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 4700 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.725 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
UCY2D151MHDCAP ALUM 150UF 20% 200V RADIAL |
200 | 2.35 |
RFQ |
Datasheet |
Bulk | UCY | Active | 150 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 965 mA @ 120 Hz | 1.93 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.457 (37.00mm) | - | Through Hole |
|

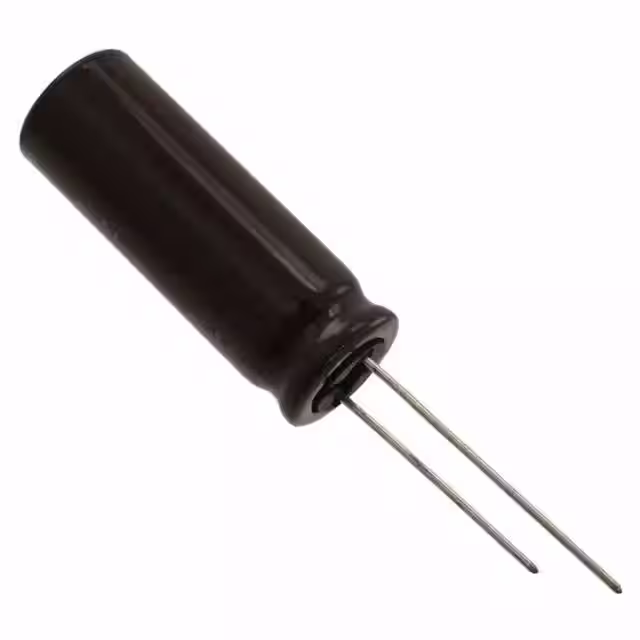

UPA1E272MHDCAP ALUM 2700UF 20% 25V RADIAL |
114 | 2.36 |
RFQ |
Datasheet |
Bulk | UPA | Active | 2700 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.499 A @ 120 Hz | 2.94 A @ 100 kHz | 16 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|

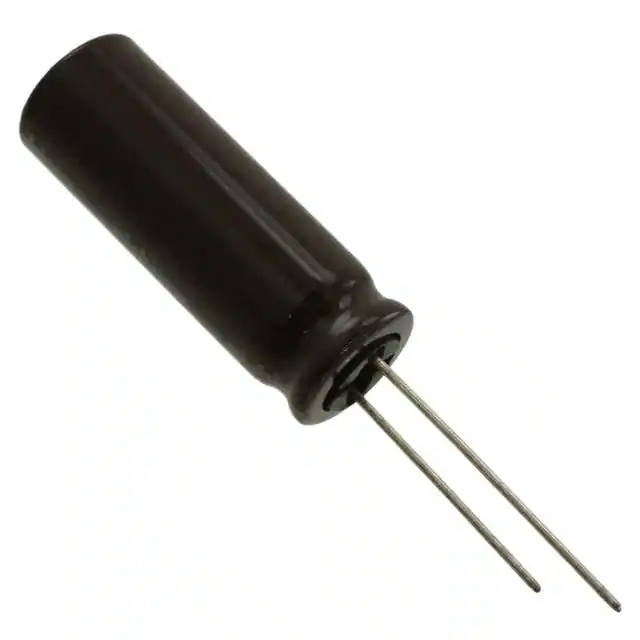

UPA1V182MHDCAP ALUM 1800UF 20% 35V RADIAL |
105 | 2.38 |
RFQ |
Datasheet |
Bulk | UPA | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.499 A @ 120 Hz | 2.94 A @ 100 kHz | 16 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|

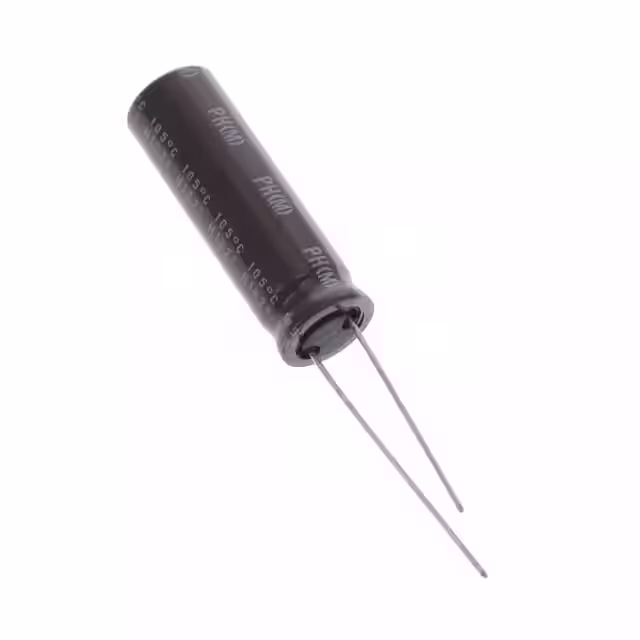

UPH2W270MPDCAP ALUM 27UF 20% 450V RADIAL |
370 | 2.39 |
RFQ |
Datasheet |
Bulk | UPH | Active | 27 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 450 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

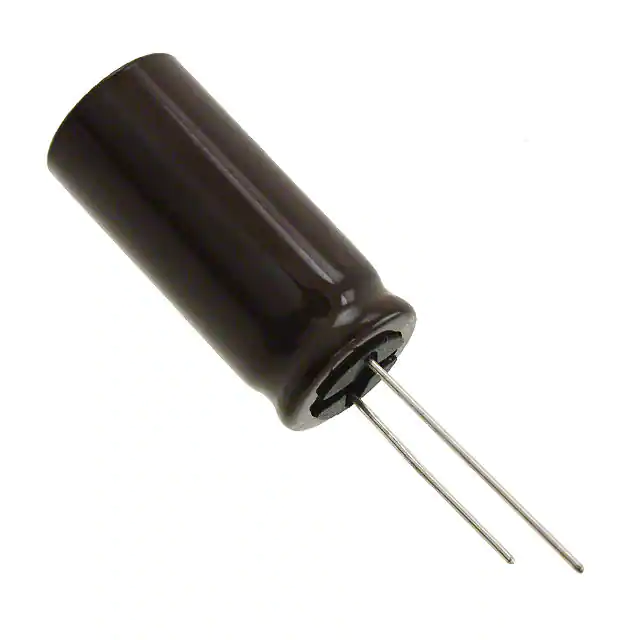

UPJ1K561MHDCAP ALUM 560UF 20% 80V RADIAL |
219 | 2.42 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 560 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.3 A @ 120 Hz | 1.6 A @ 10 kHz | 62 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.457 (37.00mm) | - | Through Hole |
|

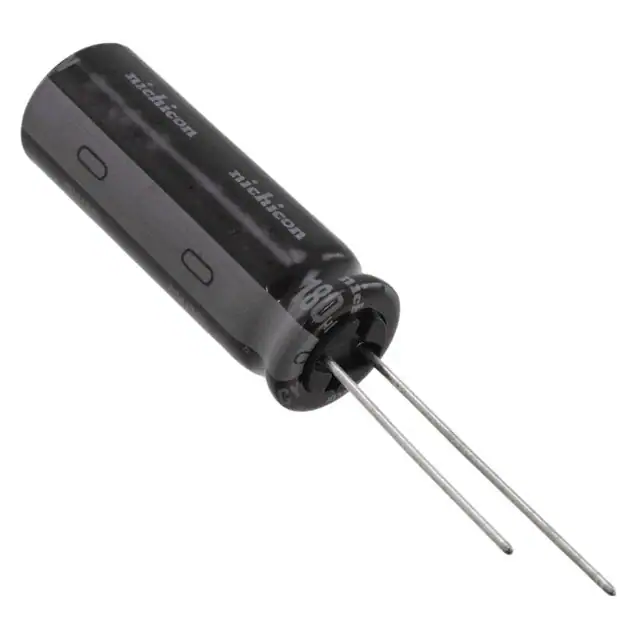

UCY2C221MHD6CAP ALUM 220UF 20% 160V RADIAL |
136 | 2.44 |
RFQ |
Datasheet |
Bulk | UCY | Active | 220 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.105 A @ 120 Hz | 2.21 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.846 (21.50mm) | - | Through Hole |
|
UUE1A472MNS1MSCAP ALUM 4700UF 20% 10V SMD |
274 | 3.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UUE | Active | 4700 µF | ±20% | 10 V | - | 5000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | 1.349 A @ 120 Hz | 1.55 A @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
UBW1K221MHDCAP ALUM 220UF 20% 80V RADIAL |
2,631 | 2.53 |
RFQ |
Datasheet |
Bulk | UBW | Active | 220 µF | ±20% | 80 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 620 mA @ 120 Hz | 1.24 A @ 100 kHz | 180 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
UPJ1J102MHDCAP ALUM 1000UF 20% 63V RADIAL |
300 | 2.54 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 1000 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.05 A @ 120 Hz | 2.37 A @ 10 kHz | 37 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
|
UPJ1C562MHDCAP ALUM 5600UF 20% 16V RADIAL |
236 | 2.55 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 5600 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.53 A @ 120 Hz | 2.82 A @ 10 kHz | 24 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.634 (41.50mm) | - | Through Hole |
|
|
UKL0J472KHDCAP ALUM 4700UF 10% 6.3V RADIAL |
185 | 2.55 |
RFQ |
Datasheet |
Bulk | UKL | Not For New Designs | 4700 µF | ±10% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 1.725 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.299 (33.00mm) | - | Through Hole |
|

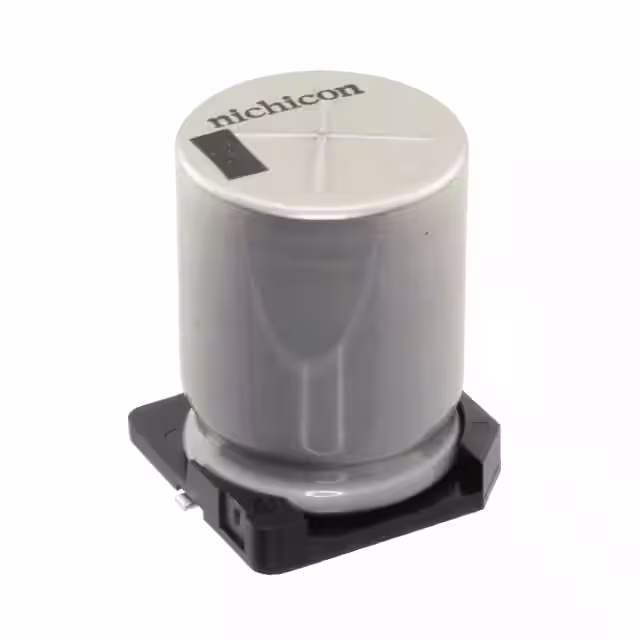

UCZ1E272MNQ1MSCAP ALUM 2700UF 20% 25V SMD |
172 | 3.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UCZ | Not For New Designs | 2700 µF | ±20% | 25 V | 34mOhm @ 100kHz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 3 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.886 (22.50mm) | 0.673 L x 0.673 W (17.10mm x 17.10mm) | Surface Mount |
|
UCY2G560MHD6CAP ALUM 56UF 20% 400V RADIAL |
148 | 2.58 |
RFQ |
Datasheet |
Bulk | UCY | Active | 56 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 585 mA @ 120 Hz | 1.17 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPZ2G560MHDCAP ALUM 56UF 20% 400V RADIAL |
500 | 2.59 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 56 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|

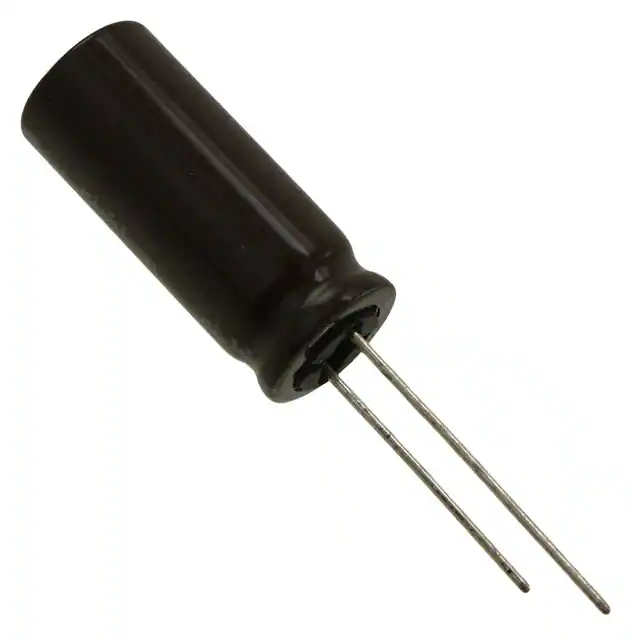

UPZW6390MHDCAP ALUM 39UF 20% 420V RADIAL |
339 | 2.60 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 39 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 465 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.319 (33.50mm) | - | Through Hole |
|
URZ2D101MHDCAP ALUM 100UF 20% 200V RADIAL |
171 | 2.60 |
RFQ |
Datasheet |
Bulk | URZ | Active | 100 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.043 (26.50mm) | - | Through Hole |
|
UPS1A682MHDCAP ALUM 6800UF 20% 10V RADIAL |
167 | 2.62 |
RFQ |
Datasheet |
Bulk | UPS | Not For New Designs | 6800 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.045 A @ 120 Hz | 2.35 A @ 100 kHz | 33 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

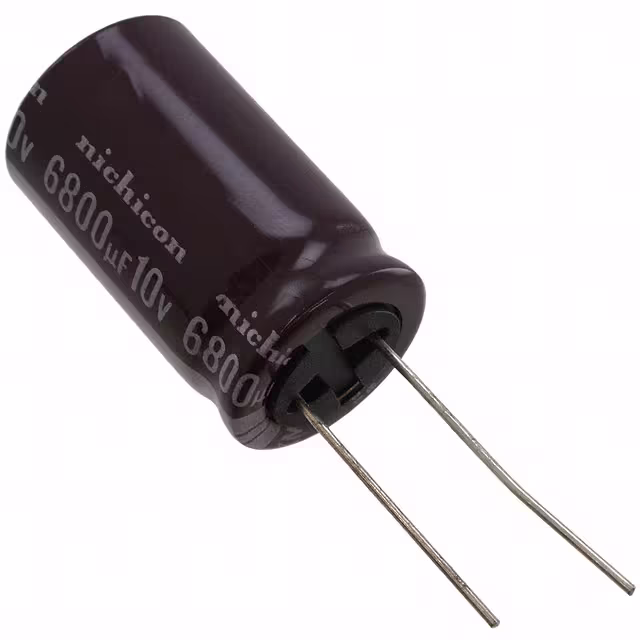

UPJ1A682MHD6CAP ALUM 6800UF 20% 10V RADIAL |
268 | 2.63 |
RFQ |
Datasheet |
Bulk | UPJ | Not For New Designs | 6800 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.28 A @ 120 Hz | 2.54 A @ 10 kHz | 27 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
UPM1H122MHD6CAP ALUM 1200UF 20% 50V RADIAL |
173 | 2.63 |
RFQ |
Datasheet |
Bulk | UPM | Not For New Designs | 1200 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.88 A @ 120 Hz | 2.14 A @ 10 kHz | 31 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
