| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGU2W820MELZCAP ALUM 82UF 20% 450V SNAP |
2,678 | 3.94 |
RFQ |
Datasheet |
Bulk | LGU | Active | 82 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 640 mA @ 120 Hz | 915.2 mA @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.181 (30.00mm) | - | Through Hole |
.JPG)
|
LNX2H472MSEJCAP ALUM 4700UF 20% 500V SCREW |
3,538 | 138.78 |
RFQ |
Datasheet |
Bulk | LNX | Active | 4700 µF | ±20% | 500 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 13.7 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
|
LNX2J222MSEJCAP ALUM 2200UF 20% 630V SCREW |
3,287 | 139.85 |
RFQ |
Datasheet |
Bulk | LNX | Active | 2200 µF | ±20% | 630 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 10.7 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.236 (133.00mm) | - | Chassis Mount |
|
UVR2D331MRDCAP ALUM 330UF 20% 200V RADIAL |
2,568 | 4.18 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 330 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.13 A @ 120 Hz | 1.2995 A @ 10 kHz | - | 0.394 (10.00mm) | 0.787 Dia (20.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

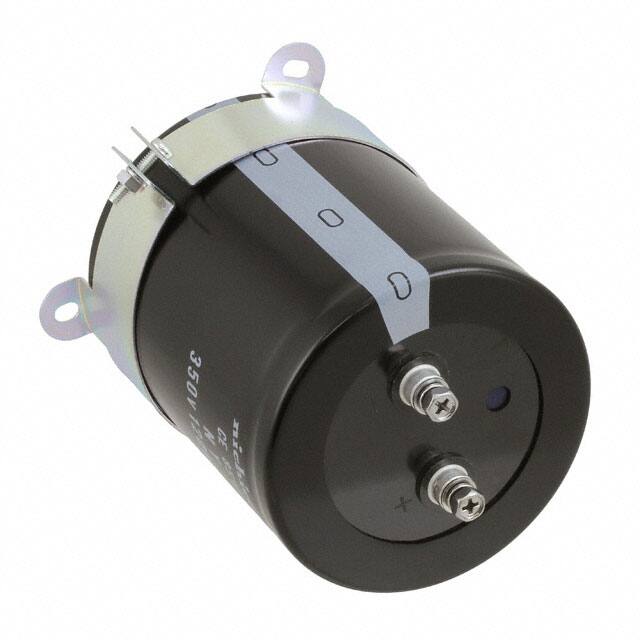

LNY2V123MSEJCAP ALUM 12000UF 20% 350V SCREW |
3,935 | 141.39 |
RFQ |
Datasheet |
Bulk | LNY | Active | 12000 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24.1 A @ 120 Hz | 33.74 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 4.331 (110.00mm) | - | Chassis Mount |
|
UCYW6820MHD6CAP ALUM 82UF 20% 420V RADIAL |
2,608 | 4.39 |
RFQ |
Datasheet |
Bulk | UCY | Active | 82 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.46 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
UVR2F221MRD6CAP ALUM 220UF 20% 315V RADIAL |
2,619 | 4.70 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 220 µF | ±20% | 315 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.232 A @ 10 kHz | - | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|

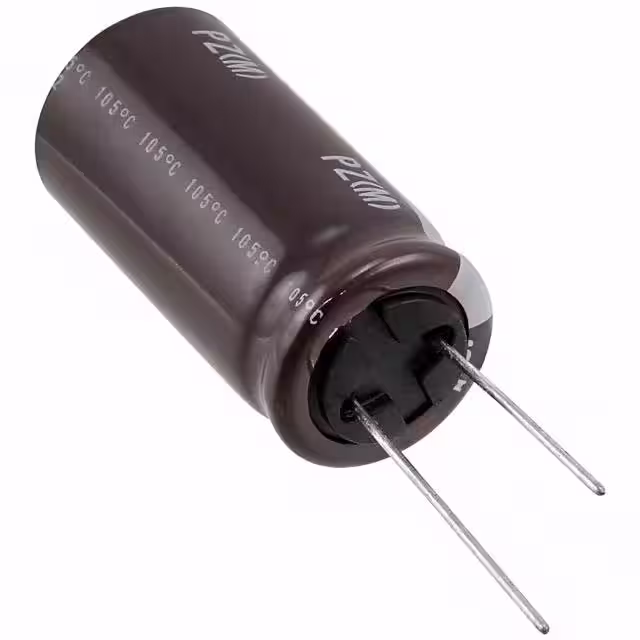

UPZ2G181MHDCAP ALUM 180UF 20% 400V RADIAL |
3,233 | 4.75 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 180 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 880 mA @ 120 Hz | 1.32 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
UPZ2G151MHD6CAP ALUM 150UF 20% 400V RADIAL |
134 | 4.81 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 150 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 770 mA @ 120 Hz | 1.155 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
UVR0J333MRDCAP ALUM 33000UF 20% 6.3V RADIAL |
332 | 4.84 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 33000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.9 A @ 120 Hz | 4.485 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.969 (50.00mm) | - | Through Hole |
|

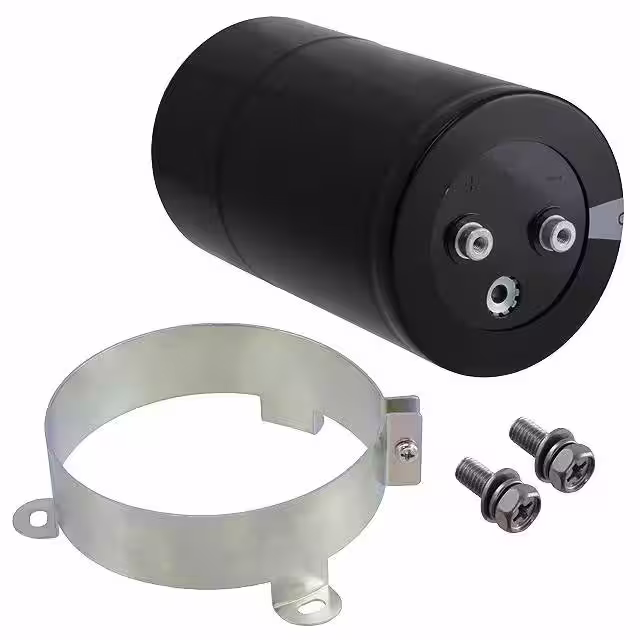

LNX2L392MSEJCAP ALUM 3900UF 20% 550V SCREW |
2,431 | 163.56 |
RFQ |
Datasheet |
Bulk | LNX | Active | 3900 µF | ±20% | 550 V | - | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 12.5 A @ 120 Hz | - | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 5.906 (150.00mm) | - | Chassis Mount |
|

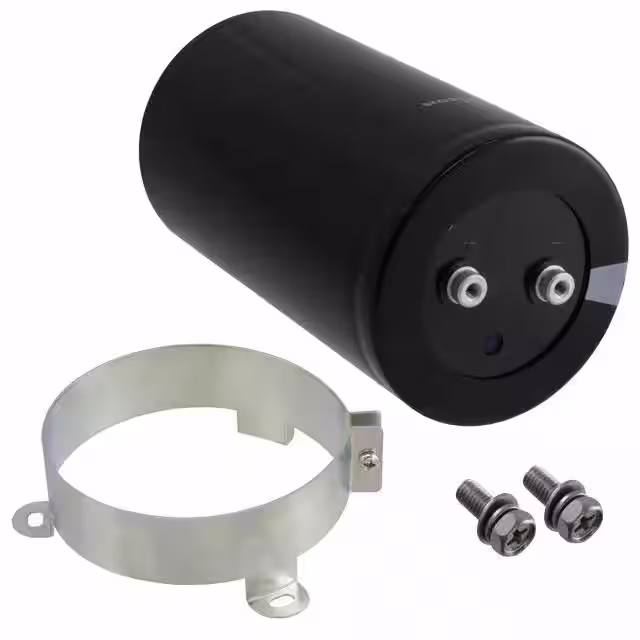

LNY2V183MSEJCAP ALUM 18000UF 20% 350V SCREW |
2,312 | 164.73 |
RFQ |
Datasheet |
Bulk | LNY | Active | 18000 µF | ±20% | 350 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31.1 A @ 120 Hz | 43.54 A @ 10 kHz | - | 1.252 (31.80mm) | 3.543 Dia (90.00mm) | 6.102 (155.00mm) | - | Chassis Mount |
|
LLS2G271MELBCAP ALUM 270UF 20% 400V SNAP |
3,331 | 4.71 |
RFQ |
Datasheet |
Bulk | LLS | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.82 A @ 120 Hz | 2.6026 A @ 50 kHz | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
|
UVR1E103MRD6CAP ALUM 10000UF 20% 25V RADIAL |
542 | 4.95 |
RFQ |
Datasheet |
Bulk | UVR | Not For New Designs | 10000 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.335 A @ 10 kHz | - | 0.492 (12.50mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
LGUW6181MELACAP ALUM 180UF 20% 420V SNAP |
3,588 | 4.82 |
RFQ |
Datasheet |
Bulk | LGU | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.3585 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
LGX2D561MELZ35CAP ALUM 560UF 20% 200V SNAP |
2,513 | 5.01 |
RFQ |
Datasheet |
Bulk | LGX | Active | 560 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.325 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
LGU2G181MELACAP ALUM 180UF 20% 400V SNAP |
3,915 | 5.05 |
RFQ |
Datasheet |
Bulk | LGU | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.4014 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
|
LGX2W121MELZ35CAP ALUM 120UF 20% 450V SNAP |
3,655 | 5.08 |
RFQ |
Datasheet |
Bulk | LGX | Active | 120 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.1011 A @ 50 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
UPZW6121MHDCAP ALUM 120UF 20% 420V RADIAL |
2,678 | 5.34 |
RFQ |
Datasheet |
Bulk | UPZ | Active | 120 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 660 mA @ 120 Hz | 990 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|

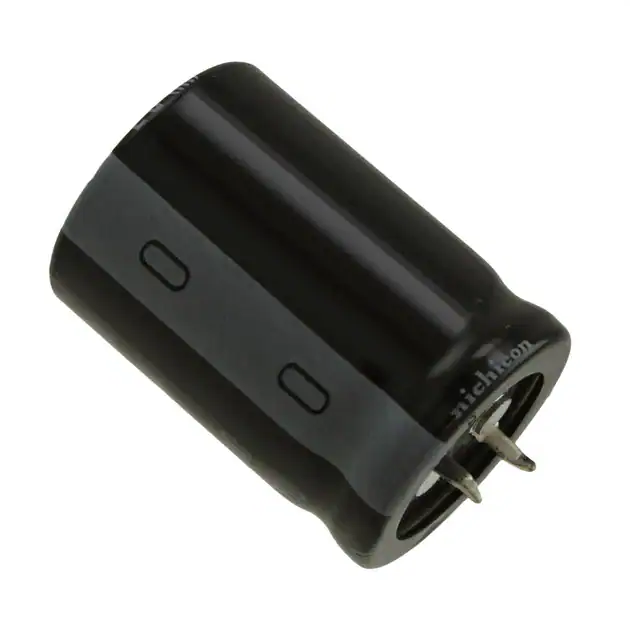

LLG2G271MELA35CAP ALUM 270UF 20% 400V SNAP |
2,145 | 5.16 |
RFQ |
Datasheet |
Bulk | LLG | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.145 A @ 50 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
