| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VHT4700M63CAP ALUM 4700UF 20% 63V RADIAL |
1,580 | 4.10 |
RFQ |
Datasheet |
Bag | VHT | Active | 4700 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.732 (44.00mm) | - | Through Hole |
|
NEVH100M350HACAP ALUM 100UF 350V RADIAL |
264 | 4.28 |
RFQ |
Datasheet |
Bag | NEVH | Active | 100 µF | -10%, +75% | 350 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
NEH470M100FECAP ALUM 470UF 20% 100V AXIAL |
632 | 4.33 |
RFQ |
Datasheet |
Bag | NEH | Active | 470 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.240 L (16.00mm x 31.50mm) | - | - | Through Hole |
|
NEVH330M160HACAP ALUM 330UF 160V RADIAL |
360 | 4.46 |
RFQ |
Datasheet |
Bag | NEVH | Active | 330 µF | -10%, +75% | 160 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
VHT47M450CAP ALUM 47UF 20% 450V RADIAL |
760 | 4.51 |
RFQ |
Datasheet |
Bag | VHT | Active | 47 µF | ±20% | 450 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.417 (36.00mm) | - | Through Hole |
|

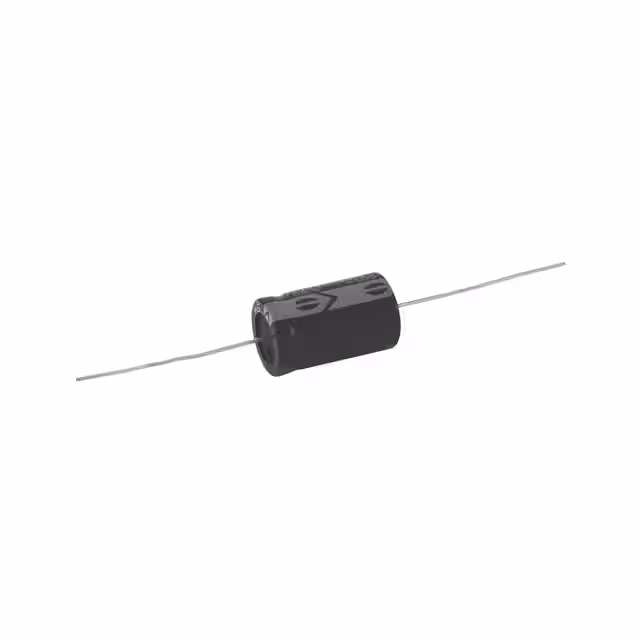

NEHH22M450FECAP ALUM 22UF 450V AXIAL |
159 | 4.52 |
RFQ |
Datasheet |
Bag | NEHH | Active | 22 µF | -10%, +75% | 450 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.300 L (16.00mm x 33.00mm) | - | - | Through Hole |
|
NEH2200M50FGCAP ALUM 2200UF 20% 50V AXIAL |
752 | 4.63 |
RFQ |
Datasheet |
Bag | NEH | Active | 2200 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.709 Dia x 1.378 L (18.00mm x 35.00mm) | - | - | Through Hole |
|

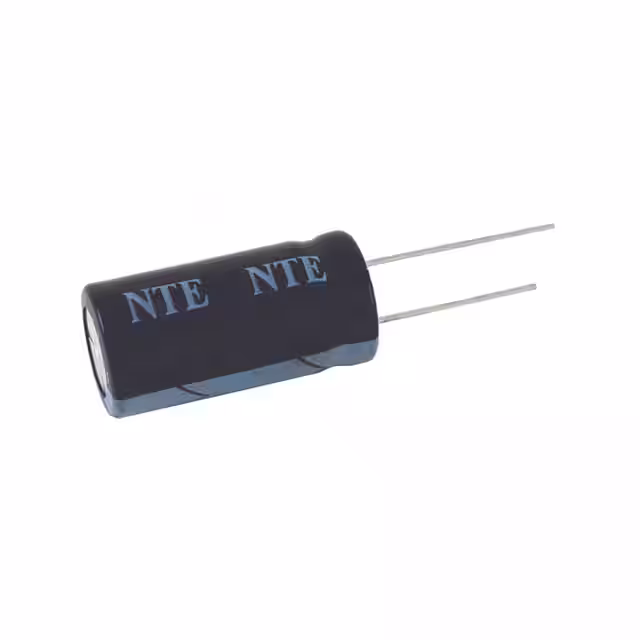

VHT2200M100CAP ALUM 2200UF 20% 100V RADIAL |
743 | 4.70 |
RFQ |
Datasheet |
Bag | VHT | Active | 2200 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
NEV6800M35HBCAP ALUM 6800UF 20% 35V RADIAL |
387 | 4.71 |
RFQ |
Datasheet |
Bag | NEV | Active | 6800 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.732 (44.00mm) | - | Through Hole |
|
NEHH47M350EGCAP ALUM 47UF 350V AXIAL |
112 | 4.81 |
RFQ |
Datasheet |
Bag | NEHH | Active | 47 µF | -10%, +75% | 350 V | - | 1000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.575 L (16.00mm x 40.00mm) | - | - | Through Hole |
|
NEH3300M35GFCAP ALUM 3300UF 20% 35V AXIAL |
678 | 4.90 |
RFQ |
Datasheet |
Bag | NEH | Active | 3300 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.709 Dia x 1.417 L (18.00mm x 36.00mm) | - | - | Through Hole |
|
NEV4700M50HBCAP ALUM 4700UF 20% 50V RADIAL |
664 | 4.91 |
RFQ |
Datasheet |
Bag | NEV | Active | 4700 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
NEH4700M25HFCAP ALUM 4700UF 20% 25V AXIAL |
584 | 4.94 |
RFQ |
Datasheet |
Bag | NEH | Active | 4700 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 0.630 Dia x 1.512 L (16.00mm x 38.50mm) | - | - | Through Hole |
|
NEV22000M10HJCAP ALUM 22000UF 20% 10V RADIAL |
749 | 4.98 |
RFQ |
Datasheet |
Bag | NEV | Active | 22000 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.866 Dia (22.00mm) | 1.496 (38.00mm) | - | Through Hole |
|
VHT15000M25CAP ALUM 15000UF 20% 25V RADIAL |
496 | 5.01 |
RFQ |
Datasheet |
Bag | VHT | Active | 15000 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
NEV1000M100HICAP ALUM 1000UF 20% 100V RADIAL |
510 | 5.04 |
RFQ |
Datasheet |
Bag | NEV | Active | 1000 µF | ±20% | 100 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.693 (43.00mm) | - | Through Hole |
|
NEVH470M160HBCAP ALUM 470UF 160V RADIAL |
775 | 5.53 |
RFQ |
Datasheet |
Bag | NEVH | Active | 470 µF | -10%, +75% | 160 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

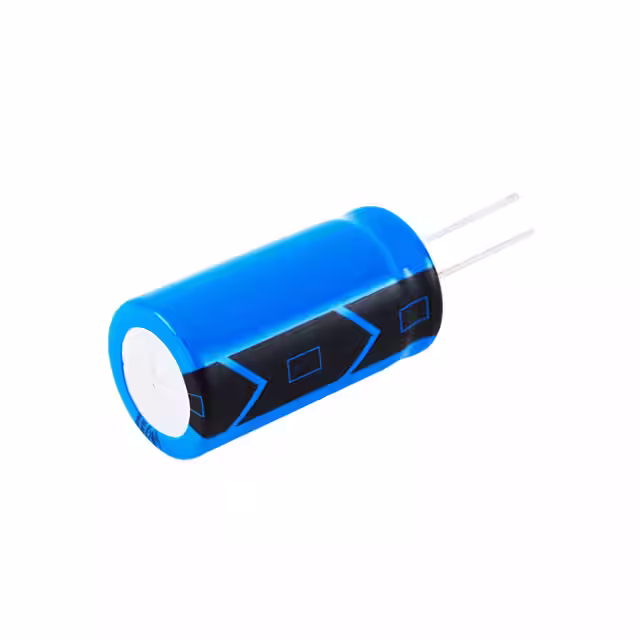

NEV10000M25HBCAP ALUM 10000UF 20% 25V RADIAL |
760 | 5.59 |
RFQ |
Datasheet |
Bag | NEV | Active | 10000 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.772 (45.00mm) | - | Through Hole |
|
VHT6800M35CAP ALUM 6800UF 20% 35V RADIAL |
880 | 5.61 |
RFQ |
Datasheet |
Bag | VHT | Active | 6800 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.732 (44.00mm) | - | Through Hole |
|
VHT3300M63CAP ALUM 3300UF 20% 63V RADIAL |
422 | 5.61 |
RFQ |
Datasheet |
Bag | VHT | Active | 3300 µF | ±20% | 63 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.614 (41.00mm) | - | Through Hole |
