| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500C451T450BB2BCAP ALUM 450UF 450V SCREW |
2,933 | 46.41 |
RFQ |
Datasheet |
Bulk | 500C | Active | 450 µF | -10%, +50% | 450 V | 306mOhm | 5000 Hrs @ 95°C | -40°C ~ 95°C | Polar | - | General Purpose | - | - | - | 0.874 (22.20mm) | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
CGS123U035R4CCAP ALUM 12000UF 35V SCREW |
2,277 | 48.85 |
RFQ |
Datasheet |
Bulk | CGS | Active | 12000 µF | -10%, +75% | 35 V | 18mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.4 A @ 120 Hz | 10.92 A @ 10 kHz | - | - | 1.375 Dia (34.93mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
DCMX812T100BB2BCAP ALUM 8100UF 100V SCREW |
2,697 | 50.14 |
RFQ |
Datasheet |
Bulk | DCMX | Active | 8100 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.875 (22.23mm) | 2.000 Dia (50.80mm) | 3.187 (80.95mm) | - | Chassis Mount |
|
DCM413U050DC2BCAP ALUM 41000UF 50V SCREW |
2,552 | 50.36 |
RFQ |
Datasheet |
Bulk | DCM | Active | 41000 µF | - | 50 V | - | - | - | - | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 4.187 (106.35mm) | - | Chassis Mount |
|
CG403U016V4CCAP ALUM 40000UF 16V SCREW |
3,898 | 50.92 |
RFQ |
Datasheet |
Bulk | CG | Active | 40000 µF | -10%, +75% | 16 V | 9mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14.7 A @ 120 Hz | 16.905 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
CGS651T350V3CCAP ALUM 650UF 350V SCREW |
3,258 | 53.70 |
RFQ |
Datasheet |
Bulk | CGS | Active | 650 µF | -10%, +50% | 350 V | 212mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 120 Hz | 4.05 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
CGS222T200V4CCAP ALUM 2200UF 200V SCREW |
3,053 | 54.25 |
RFQ |
Datasheet |
Bulk | CGS | Active | 2200 µF | -10%, +50% | 200 V | 54mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6 A @ 120 Hz | 9 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CGS451T450V3CCAP ALUM 450UF 450V SCREW |
3,810 | 55.52 |
RFQ |
Datasheet |
Bulk | CGS | Active | 450 µF | -10%, +50% | 450 V | 188mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
DCM562U150DJ2BCAP ALUM 5600UF 150V SCREW |
3,764 | 57.42 |
RFQ |
Datasheet |
Bulk | DCM | Active | 5600 µF | -10%, +75% | 150 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 3.687 (93.65mm) | - | Chassis Mount |
|
PSU18930CAP ALUM 189UF 330V QC TERM |
3,990 | 67.11 |
RFQ |
Datasheet |
Bulk | PSU | Active | 189 µF | 0%, +20% | 330 V | - | - | -40°C ~ 65°C | Bi-Polar | - | Motor Start | - | - | - | - | 2.563 Dia (65.10mm) | 4.375 (111.13mm) | - | Chassis Mount |
|
|
CGS353U040V5LCAP ALUM 35000UF 40V SCREW |
3,355 | 58.97 |
RFQ |
Datasheet |
Bulk | CGS | Active | 35000 µF | -10%, +75% | 40 V | 15mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12.8 A @ 120 Hz | 16.64 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 5.625 (142.88mm) | - | Chassis Mount |
|
|
DCM253U075DJ2BCAP ALUM 25000UF 75V SCREW |
2,292 | 65.35 |
RFQ |
Datasheet |
Bulk | DCM | Active | 25000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 3.687 (93.65mm) | - | Chassis Mount |
|

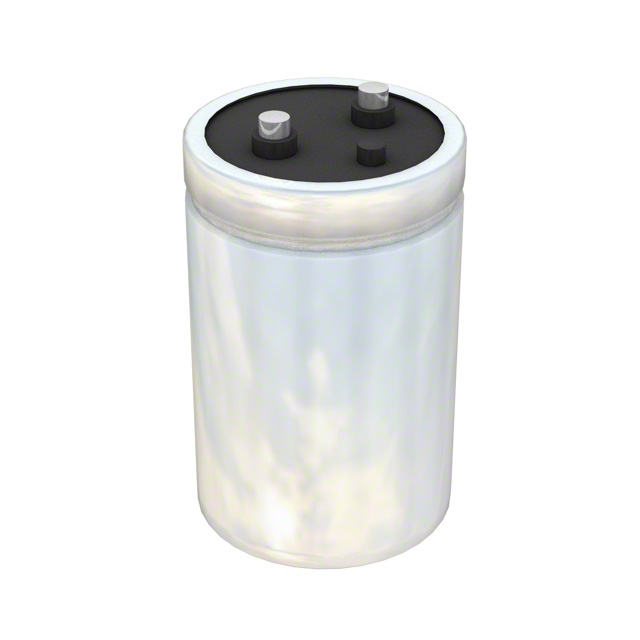

HES301G450V3CCAP ALUM 300UF 450V SCREW |
2,641 | 67.33 |
RFQ |
Datasheet |
Bulk | HES | Active | 300 µF | 0%, +50% | 450 V | 268mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.4 A @ 120 Hz | 2.952 A @ 10 kHz | - | - | 2.000 Dia (50.80mm) | 3.125 (79.38mm) | - | Chassis Mount |
|
|
DCM273U075DF2BCAP ALUM 27000UF 75V SCREW |
3,777 | 70.30 |
RFQ |
Datasheet |
Bulk | DCM | Active | 27000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.250 (31.75mm) | 3.000 Dia (76.20mm) | 5.687 (144.45mm) | - | Chassis Mount |
|

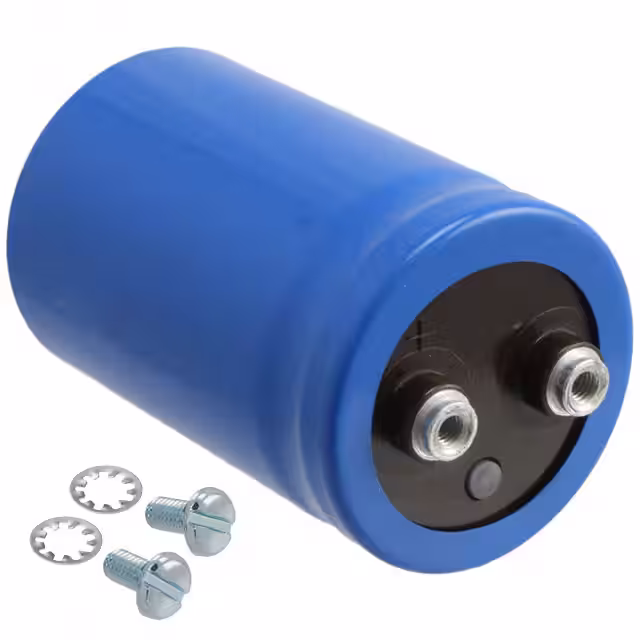

CGS402T200U4CCAP ALUM 4000UF 200V SCREW |
2,349 | 70.66 |
RFQ |
Datasheet |
Bulk | CGS | Active | 4000 µF | -10%, +50% | 200 V | 23mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 8.3 A @ 120 Hz | 12.45 A @ 10 kHz | - | - | 1.750 Dia (44.45mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
DCMC203U100BC2BCAP ALUM 20000UF 100V SCREW |
2,250 | 72.66 |
RFQ |
Datasheet |
Bulk | DCMC | Active | 20000 µF | -10%, +75% | 100 V | 19.9mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10.7 A @ 120 Hz | 11.984 A @ 10 kHz | - | 0.875 (22.22mm) | 2.000 Dia (50.80mm) | 4.187 (106.35mm) | - | Chassis Mount |
|
CGS253U075X4CCAP ALUM 25000UF 75V SCREW |
2,008 | 71.34 |
RFQ |
Datasheet |
Bulk | CGS | Active | 25000 µF | -10%, +75% | 75 V | 39mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9 A @ 120 Hz | 11.7 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
DCMX363U075CC2BCAP ALUM 36000UF 75V SCREW |
2,644 | 71.73 |
RFQ |
Bulk | DCMX | Active | 36000 µF | -10%, +75% | 75 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 1.125 (28.58mm) | 2.500 Dia (63.50mm) | 4.187 (106.35mm) | - | Chassis Mount | |
|
|
CGS572U150X4CCAP ALUM 5700UF 150V SCREW |
2,711 | 72.75 |
RFQ |
Datasheet |
Bulk | CGS | Active | 5700 µF | -10%, +75% | 150 V | 37mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 9.3 A @ 120 Hz | 12.09 A @ 10 kHz | - | - | 3.000 Dia (76.20mm) | 4.125 (104.78mm) | - | Chassis Mount |
|
|
CGS312T250U4CCAP ALUM 3100UF 250V SCREW |
3,623 | 74.63 |
RFQ |
Datasheet |
Bulk | CGS | Active | 3100 µF | -10%, +50% | 250 V | 30mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.3 A @ 120 Hz | 10.95 A @ 10 kHz | - | - | 1.750 Dia (44.45mm) | 4.125 (104.78mm) | - | Chassis Mount |
