| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEH200MV6100MU2CAP ALUM 100000UF 20% 63V SCREW |
3,061 | 131.73 |
RFQ |
Datasheet |
Box | PEH200 | Active | 100000 µF | ±20% | 63 V | 5mOhm @ 100Hz | 19000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34.3 A @ 100 Hz | 50.3 A @ 10 kHz | - | 1.260 (32.00mm) | 3.016 Dia (76.60mm) | 5.748 (146.00mm) | - | Chassis Mount |
|
ESL107M250AKBAACAP ALUM 100UF 20% 250V RADIAL |
1,156 | 2.65 |
RFQ |
Datasheet |
Bulk | ESL | Active | 100 µF | ±20% | 250 V | 1.18Ohm @ 100kHz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 960 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 2.047 (52.00mm) | - | Through Hole |
|
ALA7DA221CD550CAP ALUM 220UF 20% 550V SNAP |
427 | 11.18 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 220 µF | ±20% | 550 V | 772mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.6 A @ 100 Hz | 3.5 A @ 10 kHz | 533 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
ALA7DA241DC550CAP ALUM 240UF 20% 550V SNAP |
484 | 11.63 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 240 µF | ±20% | 550 V | 713mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.8 A @ 100 Hz | 3.7 A @ 10 kHz | 494 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
ALA7DA271CE550CAP ALUM 270UF 20% 550V SNAP |
538 | 12.61 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 270 µF | ±20% | 550 V | 630mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.9 A @ 100 Hz | 3.9 A @ 10 kHz | 435 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.614 (41.00mm) | - | Through Hole |
|
|
ALA7DA161CD600CAP ALUM 160UF 20% 600V SNAP |
489 | 13.03 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 160 µF | ±20% | 600 V | 797mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.6 A @ 100 Hz | 3.5 A @ 10 kHz | 550 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
ALA7DA301DD550CAP ALUM 300UF 20% 550V SNAP |
500 | 13.93 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 300 µF | ±20% | 550 V | 572mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.1 A @ 100 Hz | 4.2 A @ 10 kHz | 396 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
ALA7DA181DC600CAP ALUM 180UF 20% 600V SNAP |
392 | 13.95 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 180 µF | ±20% | 600 V | 714mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.8 A @ 100 Hz | 3.7 A @ 10 kHz | 494 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
ALA7DA181CE600CAP ALUM 180UF 20% 600V SNAP |
496 | 14.03 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 180 µF | ±20% | 600 V | 708mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.7 A @ 100 Hz | 3.8 A @ 10 kHz | 488 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.614 (41.00mm) | - | Through Hole |
|
|
ALA7DA361DE550CAP ALUM 360UF 20% 550V SNAP |
380 | 15.86 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 360 µF | ±20% | 550 V | 477mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.3 A @ 100 Hz | 4.8 A @ 10 kHz | 331 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 3.031 (77.00mm) | - | Through Hole |
|
|
ALA7DA221CF600CAP ALUM 220UF 20% 600V SNAP |
501 | 16.19 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 220 µF | ±20% | 600 V | 580mOhm @ 100Hz | 13000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2 A @ 100 Hz | 4.3 A @ 10 kHz | 400 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 2.047 (52.00mm) | - | Through Hole |
|

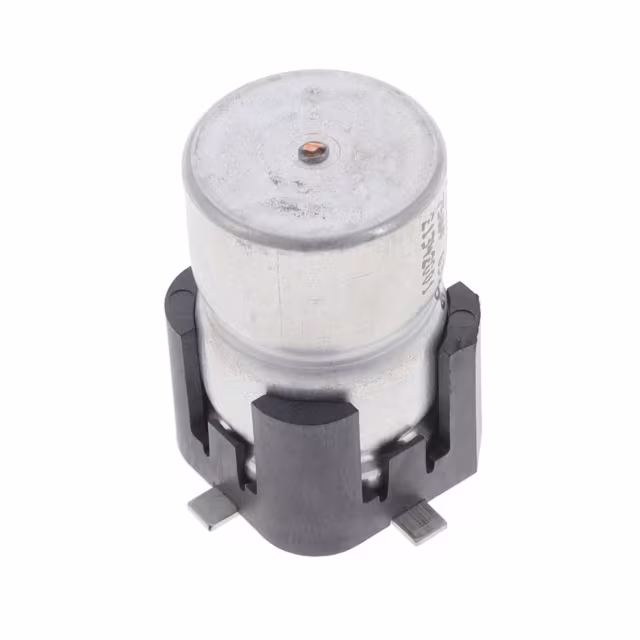

PEV228MLL3750QE4ALUMINUM ELECTROLYTIC, VERTICAL |
175 | 8.37 |
RFQ |
Datasheet |
Tray | PEV228 | Active | 750 µF | -10%, +30% | 63 V | 94mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 5.25 A @ 100 Hz | 15.6 A @ 100 kHz | - | - | - | 1.181 (30.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
ALA7DA471EE550CAP ALUM 470UF 20% 550V SNAP |
464 | 16.45 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 470 µF | ±20% | 550 V | 375mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.8 A @ 100 Hz | 5.5 A @ 10 kHz | 261 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
ALA7DA331EE600CAP ALUM 330UF 20% 600V SNAP |
463 | 16.47 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 330 µF | ±20% | 600 V | 399mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.7 A @ 100 Hz | 5.4 A @ 10 kHz | 277 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
ALA7DA221DD600CAP ALUM 220UF 20% 600V SNAP |
444 | 16.55 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 220 µF | ±20% | 600 V | 585mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2 A @ 100 Hz | 4.2 A @ 10 kHz | 405 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
PEV228KLL4170QE4ALUMINUM ELECTROLYTIC, VERTICAL |
154 | 8.62 |
RFQ |
Datasheet |
Tray | PEV228 | Active | 1700 µF | -10%, +30% | 40 V | 55mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 6.58 A @ 100 Hz | 19.52 A @ 100 kHz | - | - | - | 1.181 (30.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
|
ALA7DA241DE600CAP ALUM 240UF 20% 600V SNAP |
497 | 17.76 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 240 µF | ±20% | 600 V | 535mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 2.2 A @ 100 Hz | 4.6 A @ 10 kHz | 370 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 3.031 (77.00mm) | - | Through Hole |
|
ALC80C561EH500CAP ALUM 560UF 20% 500V SNAP |
327 | 19.05 |
RFQ |
Bulk | ALC80 | Active | 560 µF | ±20% | 500 V | 312mOhm @ 100Hz | 9000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Motor Start | 3.44 A @ 100 Hz | 8.08 A @ 10 kHz | 209 mOhms | 0.886 (22.50mm) | 1.575 Dia (40.00mm) | 2.441 (62.00mm) | - | Through Hole | |
|
PEV227HLL4430QE4ALUMINUM ELECTROLYTIC, VERTICAL |
175 | 9.16 |
RFQ |
Datasheet |
Tray | PEV227 | Active | 4300 µF | -10%, +30% | 25 V | 37mOhm @ 100Hz | 8400 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 6.79 A @ 100 Hz | 20.176 A @ 100 kHz | - | - | 0.748 L x 0.748 W (19.00mm x 19.00mm) | 1.181 (30.00mm) | 1.102 L x 1.102 W (28.00mm x 28.00mm) | Surface Mount |
|
|
ALA7DA391EF600CAP ALUM 390UF 20% 600V SNAP |
431 | 19.28 |
RFQ |
Datasheet |
Bulk | ALA7D | Active | 390 µF | ±20% | 600 V | 339mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 3 A @ 100 Hz | 6 A @ 10 kHz | 235 mOhms | 0.394 (10.00mm) | 1.575 Dia (40.00mm) | 2.047 (52.00mm) | - | Through Hole |
