| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL219367221E3CAP ALUM 220UF 20% 450V SNAP |
100 | 10.53 |
RFQ |
Datasheet |
Bulk | 193 PUR-SI | Active | 220 µF | ±20% | 450 V | 370mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.5 A @ 100 Hz | 2.25 A @ 10 kHz | 210 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL225736471E3CAP ALUM 470UF 20% 400V SNAP |
2,636 | 11.31 |
RFQ |
Box | 257 PRM-SI | Active | 470 µF | ±20% | 400 V | 400mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | 3.276 A @ 10 kHz | 330 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole | |
|
|
MAL219356681E3CAP ALUM 680UF 20% 400V SNAP |
2,184 | 18.52 |
RFQ |
Datasheet |
Bulk | 193 PUR-SI | Active | 680 µF | ±20% | 400 V | 150mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.82 A @ 100 Hz | 4.23 A @ 10 kHz | 90 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
MAL225729561E3CAP ALUM 560UF 20% 500V SNAP |
3,429 | 20.92 |
RFQ |
Box | 257 PRM-SI | Active | 560 µF | ±20% | 500 V | 410mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.85 A @ 100 Hz | 3.99 A @ 10 kHz | 360 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 2.047 (52.00mm) | - | Through Hole | |
|
MAL213833102E3CAP ALUM 1000UF 20% 6.3V AXIAL |
652 | 3.53 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 138 AML | Active | 1000 µF | ±20% | 6.3 V | 380mOhm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 430 mA @ 100 Hz | 516 mA @ 10 kHz | 300 mOhms | - | 0.394 Dia x 0.709 L (10.00mm x 18.00mm) | - | - | Through Hole |
|
MAL213834151E3CAP ALUM 150UF 20% 10V AXIAL |
832 | 3.82 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 138 AML | Active | 150 µF | ±20% | 10 V | 2.1Ohm @ 100Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 140 mA @ 100 Hz | 168 mA @ 10 kHz | 1.3 Ohms | - | 0.303 Dia x 0.500 L (7.70mm x 12.70mm) | - | - | Through Hole |
|

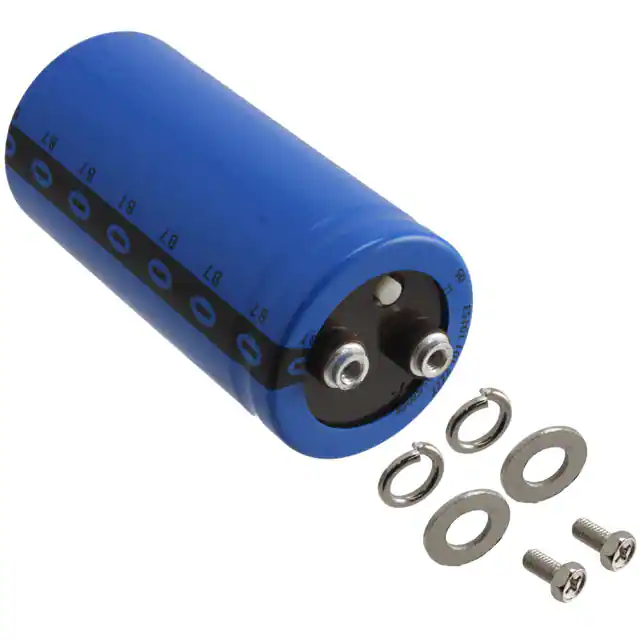

MAL210119153E3CAP ALUM 15000UF 20% 100V SCREW |
3,117 | 65.91 |
RFQ |
Datasheet |
Bulk | 101 PHR-ST | Active | 15000 µF | ±20% | 100 V | 16mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 15.99 A @ 10 kHz | 12 mOhms | 0.874 (22.20mm) | 1.969 Dia (50.00mm) | 4.134 (105.00mm) | - | Chassis Mount |
|
MAL202115102E3CAP ALUM 1000UF 20% 16V AXIAL |
2,885 | 3.95 |
RFQ |
Datasheet |
Bulk | 021 ASM | Active | 1000 µF | ±20% | 16 V | 260mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 840 mA @ 10 kHz | 175 mOhms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL213819689E3CAP ALUM 68UF 20% 100V AXIAL |
3,768 | 3.73 |
RFQ |
Datasheet |
Bulk | 138 AML | Active | 68 µF | ±20% | 100 V | 1.7Ohm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 300 mA @ 100 Hz | 420 mA @ 10 kHz | 1.1 Ohms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL202117681E3CAP ALUM 680UF 20% 40V AXIAL |
794 | 3.85 |
RFQ |
Datasheet |
Bulk | 021 ASM | Active | 680 µF | ±20% | 40 V | 297mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 1.04 A @ 10 kHz | 110 mOhms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
MAL211815222E3CAP ALUM 2200UF 20% 16V AXIAL |
3,544 | 5.72 |
RFQ |
Datasheet |
Bulk | 118 AHT | Active | 2200 µF | ±20% | 16 V | 205mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 1.212 A @ 10 kHz | 180 mOhms | - | 0.591 Dia x 1.181 L (15.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL202116682E3CAP ALUM 6800UF 20% 25V AXIAL |
2,331 | 6.52 |
RFQ |
Datasheet |
Bulk | 021 ASM | Active | 6800 µF | ±20% | 25 V | 64mOhm | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 2.691 A @ 10 kHz | 35 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|
|
MAL211817222E3CAP ALUM 2200UF 20% 40V AXIAL |
2,687 | 11.52 |
RFQ |
Datasheet |
Bulk | 118 AHT | Active | 2200 µF | ±20% | 40 V | 105mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 2.002 A @ 10 kHz | 100 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|
MAL212634471E3CAP ALUM 470UF 20% 10V AXIAL |
1,000 | 1.22 |
RFQ |
Datasheet |
Tape & Box (TB) | 126 ALX | Active | 470 µF | ±20% | 10 V | 1.016Ohm @ 100Hz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 115 mA @ 100 Hz | 138 mA @ 10 kHz | 2.1 Ohms | - | 0.256 Dia x 0.709 L (6.50mm x 18.00mm) | - | - | Through Hole |
|
|
MAL212637121E3CAP ALUM 120UF 20% 40V AXIAL |
500 | 1.43 |
RFQ |
Datasheet |
Tape & Box (TB) | 126 ALX | Active | 120 µF | ±20% | 40 V | 1.459Ohm @ 100Hz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 150 mA @ 100 Hz | 195 mA @ 10 kHz | 1.3 Ohms | - | 0.315 Dia x 0.709 L (8.00mm x 18.00mm) | - | - | Through Hole |
|
|
MAL212636271E3CAP ALUM 270UF 20% 25V AXIAL |
1,000 | 1.46 |
RFQ |
Datasheet |
Tape & Box (TB) | 126 ALX | Active | 270 µF | ±20% | 25 V | 1.061Ohm @ 100Hz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 200 mA @ 100 Hz | 240 mA @ 10 kHz | 1.25 Ohms | - | 0.394 Dia x 0.709 L (10.00mm x 18.00mm) | - | - | Through Hole |
|
|
MAL212636561E3CAP ALUM 560UF 20% 25V AXIAL |
500 | 1.55 |
RFQ |
Datasheet |
Tape & Box (TB) | 126 ALX | Active | 560 µF | ±20% | 25 V | 512mOhm @ 100Hz | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 330 mA @ 100 Hz | 396 mA @ 10 kHz | 570 mOhms | - | 0.394 Dia x 0.984 L (10.00mm x 25.00mm) | - | - | Through Hole |
|
MAL219055102E3CAP ALUM 1000UF 20% 16V RADIAL |
470 | 1.91 |
RFQ |
Datasheet |
Bulk | 190 RTL | Active | 1000 µF | ±20% | 16 V | - | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 917 mA @ 100 Hz | 1.31 A @ 100 kHz | 53 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL212614682E3CAP ALUM 6800UF 20% 10V AXIAL |
3,581 | 5.83 |
RFQ |
Datasheet |
Bulk | 126 ALX | Active | 6800 µF | ±20% | 10 V | 65mOhm @ 100Hz | 8000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 1.35 A @ 100 Hz | 1.62 A @ 10 kHz | 43 mOhms | - | 0.709 Dia x 1.181 L (18.00mm x 30.00mm) | - | - | Through Hole |
|
|
MAL219359181E3CAP ALUM 180UF 20% 500V SNAP |
3,681 | 12.17 |
RFQ |
Datasheet |
Bulk | 193 PUR-SI | Active | 180 µF | ±20% | 500 V | 760mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 100 Hz | 2.01 A @ 10 kHz | 560 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole |
