| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL205017222E3CAP ALUM 2200UF 40V SOLDER LUG |
670 | 12.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 050 PED-PW | Active | 2200 µF | -10%, +30% | 40 V | 76mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.7 A @ 100 Hz | - | 51 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Chassis Mount |
|
MAL215732471E3CAP ALUM 470UF 20% 200V SNAP |
734 | 8.97 |
RFQ |
Datasheet |
Bulk | 157 PUM-SI | Active | 470 µF | ±20% | 200 V | 350mOhm | 5000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | 2.352 A @ 10 kHz | 400 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL205655103E3CAP ALUM 10000UF 20% 16V SNAP |
684 | 9.27 |
RFQ |
Datasheet |
Bulk | 056 PSM-SI | Active | 10000 µF | ±20% | 16 V | 47mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.02 A @ 100 Hz | - | 39 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
MAL205657332E3CAP ALUM 3300UF 20% 40V SNAP |
2,166 | 9.20 |
RFQ |
Datasheet |
Bulk | 056 PSM-SI | Active | 3300 µF | ±20% | 40 V | 67mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.09 A @ 100 Hz | - | 45 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
MAL212015472E3CAP ALUM 4700UF 20% 16V AXIAL |
842 | 9.23 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 4700 µF | ±20% | 16 V | 27mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 4.35 A @ 10 kHz | 29 mOhms | - | 0.709 Dia x 1.496 L (18.00mm x 38.00mm) | - | - | Through Hole |
|
MAL215956121E3CAP ALUM 120UF 20% 400V SNAP |
979 | 9.45 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 120 µF | ±20% | 400 V | 1.6Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 760 mA @ 120 Hz | - | 1.1 Ohms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
MAL215819102E3CAP ALUM 1000UF 20% 100V SNAP |
786 | 10.34 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 1000 µF | ±20% | 100 V | 261mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 100 Hz | - | 234 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
MAL215936151E3CAP ALUM 150UF 20% 400V SNAP |
652 | 10.64 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 150 µF | ±20% | 400 V | 1.4Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 860 mA @ 120 Hz | - | 860 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
MAL225957221E3CAP ALUM 220UF 20% 450V SNAP |
1,053 | 10.72 |
RFQ |
Datasheet |
Bulk | 259 PHM-SI | Active | 220 µF | ±20% | 450 V | 530mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | 2.4 A @ 10 kHz | 360 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
MAL215742681E3CAP ALUM 680UF 20% 200V SNAP |
793 | 11.22 |
RFQ |
Datasheet |
Bulk | 157 PUM-SI | Active | 680 µF | ±20% | 200 V | 350mOhm @ 100Hz | 5000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.18 A @ 120 Hz | - | 340 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|

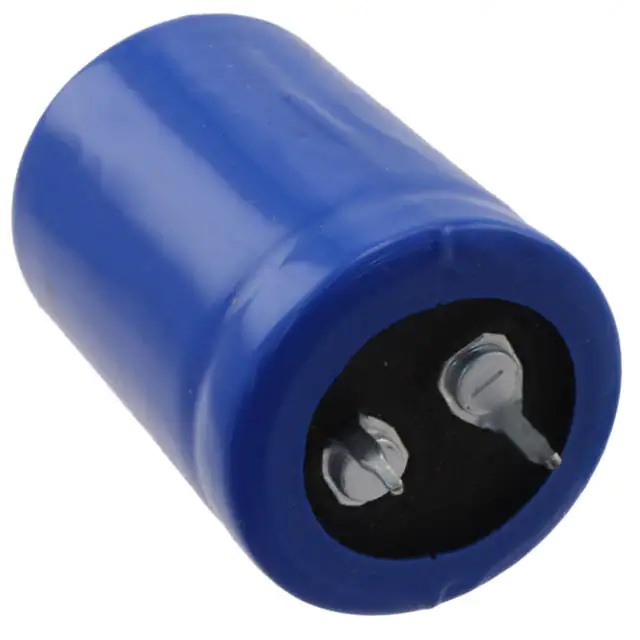

MAL215733471E3CAP ALUM 470UF 20% 250V SNAP |
792 | 11.43 |
RFQ |
Datasheet |
Bulk | 157 PUM-SI | Active | 470 µF | ±20% | 250 V | 280mOhm | 5000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | 2.618 A @ 10 kHz | 320 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL205656682E3CAP ALUM 6800UF 20% 25V SNAP |
798 | 11.46 |
RFQ |
Datasheet |
Bulk | 056 PSM-SI | Active | 6800 µF | ±20% | 25 V | 54mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.81 A @ 100 Hz | - | 41 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
MAL205017472E3CAP ALUM 4700UF 40V SOLDER LUG |
1,164 | 14.33 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | 050 PED-PW | Active | 4700 µF | -10%, +30% | 40 V | 48mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.8 A @ 100 Hz | - | 35 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.654 (42.00mm) | - | Chassis Mount |
|
|
MAL205655223E3CAP ALUM 22000UF 20% 16V SNAP |
1,596 | 11.57 |
RFQ |
Datasheet |
Bulk | 056 PSM-SI | Active | 22000 µF | ±20% | 16 V | 33mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 4.51 A @ 100 Hz | - | 28 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL212019471E3CAP ALUM 470UF 20% 100V AXIAL |
711 | 11.63 |
RFQ |
Datasheet |
Bulk | 120 ATC | Active | 470 µF | ±20% | 100 V | 92mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.8 A @ 10 kHz | 94 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|
|
MAL215746221E3CAP ALUM 220UF 20% 400V SNAP |
760 | 11.80 |
RFQ |
Datasheet |
Bulk | 157 PUM-SI | Active | 220 µF | ±20% | 400 V | 520mOhm | 5000 Hrs @ 85°C | -25°C ~ 85°C | - | - | General Purpose | - | 2.156 A @ 10 kHz | 590 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
MAL205858222E3CAP ALUM 2200UF 20% 63V SNAP |
593 | 11.88 |
RFQ |
Datasheet |
Bulk | 058 PLL-SI | Active | 2200 µF | ±20% | 63 V | 101mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.27 A @ 100 Hz | - | 70 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
MAL205646103E3CAP ALUM 10000UF 20% 25V SNAP |
1,459 | 11.92 |
RFQ |
Datasheet |
Bulk | 056 PSM-SI | Active | 10000 µF | ±20% | 25 V | 39mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 3.73 A @ 100 Hz | - | 30 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL215933471E3CAP ALUM 470UF 20% 250V SNAP |
797 | 11.94 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 470 µF | ±20% | 250 V | 505mOhm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.58 A @ 120 Hz | - | 400 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
MAL219847151E3CAP ALUM 150UF 20% 450V SNAP |
794 | 12.07 |
RFQ |
Datasheet |
Bulk | 198 PHR-SI | Active | 150 µF | ±20% | 450 V | 637mOhm @ 100Hz | 15000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | - | 500 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.654 (42.00mm) | - | Through Hole |
