| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL215815562E3CAP ALUM 5600UF 20% 16V SNAP |
3,557 | 4.64 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 5600 µF | ±20% | 16 V | 111mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | - | 98 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
MAL215855562E3CAP ALUM 5600UF 20% 16V SNAP |
2,693 | 4.64 |
RFQ |
Datasheet |
Bulk | 158 PUL-SI | Active | 5600 µF | ±20% | 16 V | 111mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 100 Hz | - | 98 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL215929101E3CAP ALUM 100UF 20% 500V SNAP |
3,421 | 4.65 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 100 µF | ±20% | 500 V | 1.31Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | 960 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL215969101E3CAP ALUM 100UF 20% 500V SNAP |
3,034 | 4.65 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 100 µF | ±20% | 500 V | 1.31Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | 960 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.457 (37.00mm) | - | Through Hole |
|
|
MAL215989101E3CAP ALUM 100UF 20% 500V SNAP |
2,907 | 4.65 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 100 µF | ±20% | 500 V | 1.3Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.12 A @ 10 kHz | 960 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.654 (42.00mm) | - | Through Hole |
|
|
MAL215611222E3CAP ALUM 2200UF 20% 50V SNAP |
3,813 | 4.66 |
RFQ |
Datasheet |
Bulk | 156 PUM-SI | Active | 2200 µF | ±20% | 50 V | 107mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | - | 62 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL215651222E3CAP ALUM 2200UF 20% 50V SNAP |
3,448 | 4.66 |
RFQ |
Datasheet |
Bulk | 156 PUM-SI | Active | 2200 µF | ±20% | 50 V | 107mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.34 A @ 100 Hz | - | 62 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
MAL225717221E3CAP ALUM 220UF 20% 450V SNAP |
2,945 | 4.67 |
RFQ |
Box | 257 PRM-SI | Active | 220 µF | ±20% | 450 V | 890mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.52 A @ 100 Hz | 2.128 A @ 10 kHz | 750 mOhms | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
MAL211944152E3CAP ALUM 1500UF 10V AXIAL |
2,877 | 4.68 |
RFQ |
Datasheet |
Tape & Reel (TR) | 119 AHT-DIN | Active | 1500 µF | -10%, +50% | 10 V | 230mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 1.1 A @ 100 Hz | - | 170 mOhms | - | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
MAL213814153E3CAP ALUM 15000UF 20% 10V AXIAL |
2,885 | 5.96 |
RFQ |
Datasheet |
Bulk | 138 AML | Active | 15000 µF | ±20% | 10 V | 63mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Automotive | 2.2 A @ 100 Hz | 2.64 A @ 10 kHz | 58 mOhms | - | 0.827 Dia x 1.496 L (21.00mm x 38.00mm) | - | - | Through Hole |
|
MAL204247339E3CAP ALUM 33UF 450V AXIAL |
3,875 | 4.69 |
RFQ |
Datasheet |
Tape & Box (TB) | 042 ASH | Active | 33 µF | -10%, +50% | 450 V | 4.5Ohm @ 100Hz | 10000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 350 mA @ 100 Hz | - | 2.7 Ohms | 0.768 (19.50mm) | 0.709 Dia (18.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
MAL211948151E3CAP ALUM 150UF 63V AXIAL |
3,157 | 4.69 |
RFQ |
Datasheet |
Tape & Reel (TR) | 119 AHT-DIN | Active | 150 µF | -10%, +50% | 63 V | 850mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 560 mA @ 100 Hz | - | 370 mOhms | - | 0.591 Dia (15.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
MAL211949101E3CAP ALUM 100UF 100V AXIAL |
3,733 | 4.69 |
RFQ |
Datasheet |
Tape & Reel (TR) | 119 AHT-DIN | Active | 100 µF | -10%, +50% | 100 V | 1.4Ohm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 440 mA @ 100 Hz | - | 960 mOhms | - | 0.591 Dia (15.00mm) | 1.299 (33.00mm) | - | Through Hole |
|
|
MAL225742122E3CAP ALUM 1200UF 20% 200V SNAP |
3,194 | 4.69 |
RFQ |
Box | 257 PRM-SI | Active | 1200 µF | ±20% | 200 V | 130mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.52 A @ 100 Hz | 4.928 A @ 10 kHz | 100 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole | |
|
|
MAL225732122E3CAP ALUM 1200UF 20% 200V SNAP |
2,772 | 4.69 |
RFQ |
Box | 257 PRM-SI | Active | 1200 µF | ±20% | 200 V | 160mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.89 A @ 100 Hz | 4.046 A @ 10 kHz | 120 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole | |
|
|
MAL225782122E3CAP ALUM 1200UF 20% 200V SNAP |
2,279 | 4.69 |
RFQ |
Box | 257 PRM-SI | Active | 1200 µF | ±20% | 200 V | 160mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.89 A @ 100 Hz | 4.046 A @ 10 kHz | 120 mOhms | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.457 (37.00mm) | - | Through Hole | |
|
|
MAL225772122E3CAP ALUM 1200UF 20% 200V SNAP |
3,080 | 4.69 |
RFQ |
Box | 257 PRM-SI | Active | 1200 µF | ±20% | 200 V | 130mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.52 A @ 100 Hz | 4.928 A @ 10 kHz | 100 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 2.047 (52.00mm) | - | Through Hole | |
|

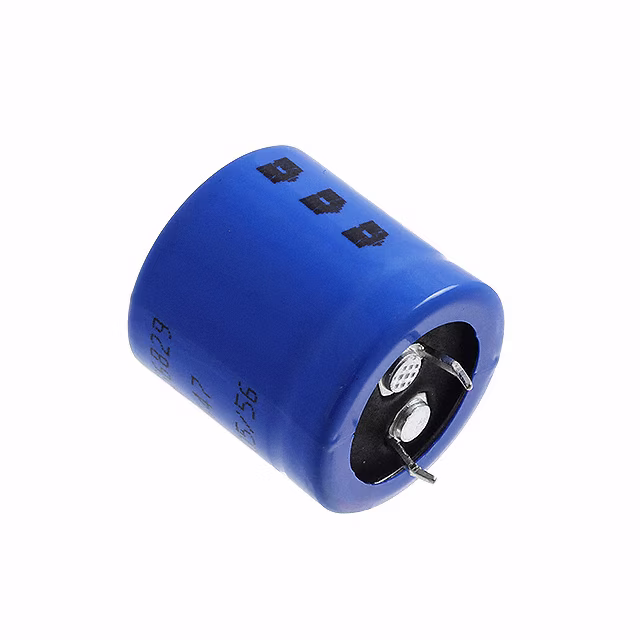

MAL215956829E3CAP ALUM 82UF 20% 400V SNAP |
2,091 | 4.70 |
RFQ |
Datasheet |
Bulk | 159 PUL-SI | Active | 82 µF | ±20% | 400 V | 2.4Ohm @ 100Hz | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 600 mA @ 120 Hz | - | 1.52 Ohms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL215618182E3CAP ALUM 1800UF 20% 63V SNAP |
3,976 | 4.70 |
RFQ |
Datasheet |
Bulk | 156 PUM-SI | Active | 1800 µF | ±20% | 63 V | 120mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.37 A @ 100 Hz | - | 69 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
MAL215658182E3CAP ALUM 1800UF 20% 63V SNAP |
3,607 | 4.70 |
RFQ |
Datasheet |
Bulk | 156 PUM-SI | Active | 1800 µF | ±20% | 63 V | 120mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.37 A @ 100 Hz | - | 69 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
