| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL214251332E3CAP ALUM 3300UF 20% 50V RADIAL |
2,993 | 2.16 |
RFQ |
Datasheet |
Bulk | 142 RHS | Active | 3300 µF | ±20% | 50 V | - | 2500 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 2.036 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
|
MAL215034682E3CAP ALUM 6800UF 20% 10V RADIAL |
2,754 | 2.16 |
RFQ |
Datasheet |
Tape & Box (TB) | 150 RMI | Active | 6800 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.196 A @ 100 Hz | - | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL215035472E3CAP ALUM 4700UF 20% 16V RADIAL |
2,790 | 2.16 |
RFQ |
Datasheet |
Tape & Box (TB) | 150 RMI | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.196 A @ 100 Hz | - | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL215036332E3CAP ALUM 3300UF 20% 25V RADIAL |
3,690 | 2.16 |
RFQ |
Datasheet |
Tape & Box (TB) | 150 RMI | Active | 3300 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.196 A @ 100 Hz | - | 19 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
MAL215038102E3CAP ALUM 1000UF 20% 63V RADIAL |
2,080 | 2.16 |
RFQ |
Datasheet |
Tape & Box (TB) | 150 RMI | Active | 1000 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.444 A @ 100 Hz | - | 42 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
MAL213216471E3CAP ALUM 470UF 25V AXIAL |
2,876 | 2.16 |
RFQ |
Datasheet |
Bulk | 132 ALL-DIN | Active | 470 µF | -10%, +50% | 25 V | 370mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 560 mA @ 100 Hz | - | - | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
|
MAL213226471E3CAP ALUM 470UF 25V AXIAL |
2,336 | 2.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | 132 ALL-DIN | Active | 470 µF | -10%, +50% | 25 V | 370mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 560 mA @ 100 Hz | - | - | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|

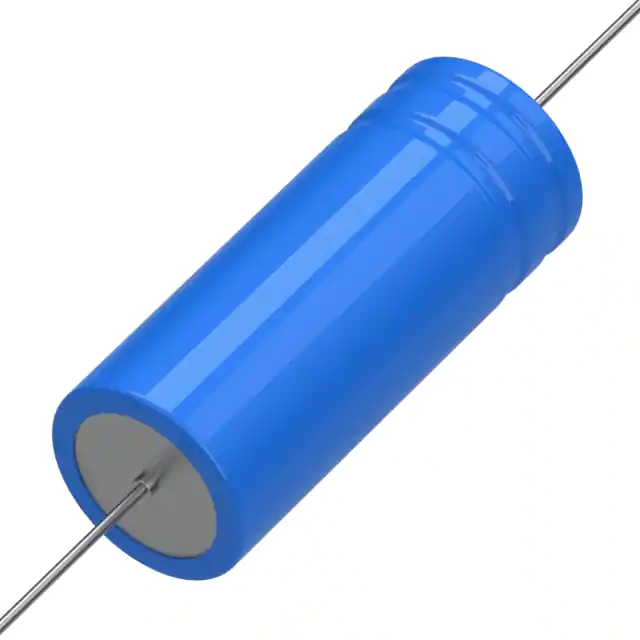

MAL211916221E3CAP ALUM 220UF 25V AXIAL |
3,051 | 2.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | 119 AHT-DIN | Active | 220 µF | -10%, +50% | 25 V | 650mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 500 mA @ 100 Hz | - | 380 mOhms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
|
MAL211926221E3CAP ALUM 220UF 25V AXIAL |
2,248 | 2.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | 119 AHT-DIN | Active | 220 µF | -10%, +50% | 25 V | 650mOhm @ 100Hz | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 500 mA @ 100 Hz | - | 380 mOhms | - | 0.492 Dia x 1.181 L (12.50mm x 30.00mm) | - | - | Through Hole |
|
MAL225956829E3CAP ALUM 82UF 20% 400V SNAP |
3,687 | 2.17 |
RFQ |
Box | 259 PHM-SI | Active | 82 µF | ±20% | 400 V | 1.57Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 100 Hz | 1.11 A @ 10 kHz | 1.13 Ohms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
MAL225763221E3CAP ALUM 220UF 20% 250V SNAP |
2,177 | 2.17 |
RFQ |
Box | 257 PRM-SI | Active | 220 µF | ±20% | 250 V | 540mOhm @ 100Hz | 5000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.32 A @ 100 Hz | 1.848 A @ 10 kHz | 360 mOhms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
|
MAL225916829E3CAP ALUM 82UF 20% 400V SNAP |
3,823 | 2.17 |
RFQ |
Box | 259 PHM-SI | Active | 82 µF | ±20% | 400 V | 1.57Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 740 mA @ 100 Hz | 1.11 A @ 10 kHz | 1.13 Ohms | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole | |
|
|
MAL215090187E3CAP ALUM 1500UF 20% 35V RADIAL |
3,186 | 2.18 |
RFQ |
Datasheet |
Bulk | 150 RMI | Active | 1500 µF | ±20% | 35 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.632 A @ 100 Hz | - | 28 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|
|
MAL215096226E3CAP ALUM 2200UF 20% 25V RADIAL |
3,584 | 2.18 |
RFQ |
Datasheet |
Bulk | 150 RMI | Active | 2200 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.632 A @ 100 Hz | - | 28 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.476 (37.50mm) | - | Through Hole |
|
MAL214660152E3CAP ALUM 1500UF 20% 35V RADIAL |
2,813 | 2.18 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 1500 µF | ±20% | 35 V | - | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.3 A @ 100 Hz | - | 33 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL214661102E3CAP ALUM 1000UF 20% 50V RADIAL |
2,389 | 2.18 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 1000 µF | ±20% | 50 V | - | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 900 mA @ 100 Hz | - | 39 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL214665332E3CAP ALUM 3300UF 20% 16V RADIAL |
2,374 | 2.18 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 3300 µF | ±20% | 16 V | - | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.4 A @ 100 Hz | - | 33 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL214666272E3CAP ALUM 2700UF 20% 25V RADIAL |
3,345 | 2.18 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 2700 µF | ±20% | 25 V | - | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 1.4 A @ 100 Hz | - | 33 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
MAL214668471E3CAP ALUM 470UF 20% 63V RADIAL |
3,602 | 2.18 |
RFQ |
Datasheet |
Bulk | 146 RTI | Active | 470 µF | ±20% | 63 V | - | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | 750 mA @ 100 Hz | - | 55 mOhms | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
MAL212025681E3CAP ALUM 680UF 20% 16V AXIAL |
3,977 | 2.18 |
RFQ |
Datasheet |
Tape & Reel (TR) | 120 ATC | Active | 680 µF | ±20% | 16 V | 106mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.1 A @ 10 kHz | 78 mOhms | - | 0.394 Dia x 1.181 L (10.00mm x 30.00mm) | - | - | Through Hole |
