Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50YXM2.2MEFRTA5X11CAP ALUM 2.2UF 20% 50V RADIAL |
2,861 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | YXM | Active | 2.2 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 14.7 mA @ 120 Hz | 35 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|

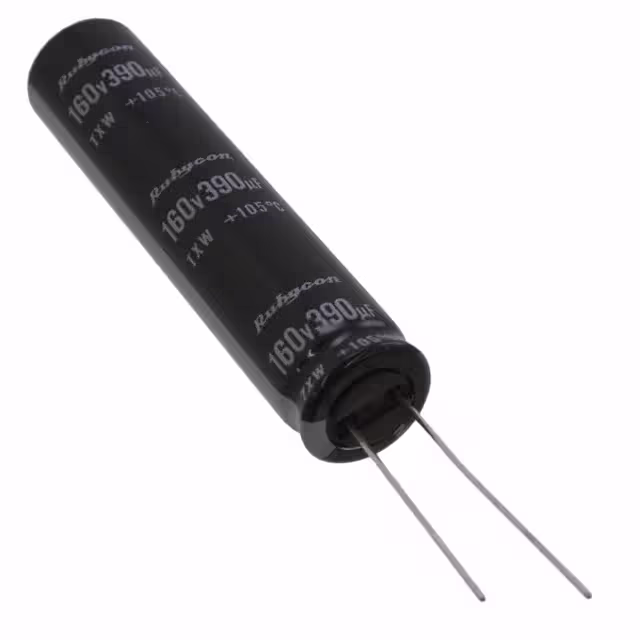

160TXW390MEFR12.5X55CAP ALUM 390UF 20% 160V RADIAL |
3,168 | 0.00 |
RFQ |
Datasheet |
Bulk | TXW | Active | 390 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.89 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 2.264 (57.50mm) | - | Through Hole |
|
|
50YXM3.3MEFRTA5X11CAP ALUM 3.3UF 20% 50V RADIAL |
3,256 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | YXM | Active | 3.3 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29.4 mA @ 120 Hz | 70 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
400TXW120KEFR16X45CAP ALUM 120UF 20% 400V RAD TH |
2,775 | 0.00 |
RFQ |
Datasheet |
Bulk | TXW | Active | 120 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
450CXW120MEFR18X31.5CAP ALUM 120UF 20% 450V RADIAL |
2,109 | 4.43 |
RFQ |
Datasheet |
Bulk | CXW | Active | 120 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.2 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
400TXW39MEFR12.5X30CAP ALUM 39UF 20% 400V RADIAL TH |
2,221 | 0.00 |
RFQ |
Datasheet |
Bulk | TXW | Active | 39 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.280 (32.50mm) | - | Through Hole |
|
420BXW15MEFR10X20CAP ALUM 15UF 20% 420V RADIAL |
2,775 | 0.00 |
RFQ |
Datasheet |
Bulk | BXW | Active | 15 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 475 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
25YXM100MEFRTZ6.3X11CAP ALUM 100UF 20% 25V RADIAL |
3,213 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | YXM | Active | 100 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 147 mA @ 120 Hz | 210 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
450CXW68MEFR18X25CAP ALUM 68UF 20% 450V RADIAL |
3,738 | 0.00 |
RFQ |
Datasheet |
Bulk | CXW | Active | 68 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
63YXM47MEFRT78X11.5CAP ALUM 47UF 20% 63V RADIAL |
3,053 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | YXM | Active | 47 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 168 mA @ 120 Hz | 240 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
420TXW100MEFRCC16X40CAP ALUM 100UF 20% 420V RADIAL |
2,050 | 0.00 |
RFQ |
Datasheet |
Bulk | TXW | Active | 100 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 730 mA @ 120 Hz | 1.09 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.673 (42.50mm) | - | Through Hole |
|
|
63YXM22MEFR6.3X11CAP ALUM 22UF 20% 63V RADIAL |
3,092 | 0.00 |
RFQ |
Datasheet |
Bulk | YXM | Active | 22 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 93.5 mA @ 120 Hz | 170 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
420CXW100MEFR16X31.5CAP ALUM 100UF 20% 420V RADIAL |
3,309 | 0.00 |
RFQ |
Datasheet |
Bulk | CXW | Active | 100 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 1.035 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
50YXM22MEFR6.3X11CAP ALUM 22UF 20% 50V RADIAL |
3,267 | 0.00 |
RFQ |
Datasheet |
Bulk | YXM | Active | 22 µF | ±20% | 50 V | - | 13000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 126.5 mA @ 120 Hz | 230 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
50YXM47MEFRTA6.3X11CAP ALUM 47UF 20% 50V RADIAL |
2,412 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | YXM | Active | 47 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 133 mA @ 120 Hz | 190 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole |
|
|
16YXM220MEFRTA8X11.5CAP ALUM 220UF 20% 16V RADIAL |
2,256 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | YXM | Active | 220 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 231 mA @ 120 Hz | 330 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
100YXM22MEFRTA8X11.5CAP ALUM 22UF 20% 100V RADIAL |
2,044 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | YXM | Active | 22 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 126.5 mA @ 120 Hz | 230 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|

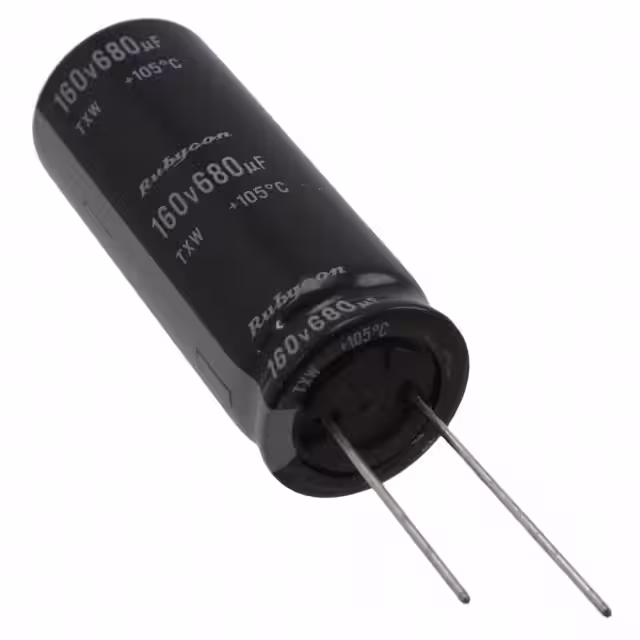

160TXW680MEFR18X45CAP ALUM 680UF 20% 160V RADIAL |
3,451 | 0.00 |
RFQ |
Datasheet |
Bulk | TXW | Active | 680 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.870 (47.50mm) | - | Through Hole |
|
|
10YXM330MEFRT78X11.5CAP ALUM 330UF 20% 10V RADIAL |
3,123 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | YXM | Active | 330 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 231 mA @ 120 Hz | 330 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
|
50YXM1MEFR5X11CAP ALUM 1UF 20% 50V RADIAL |
3,263 | 0.00 |
RFQ |
Datasheet |
Bulk | YXM | Active | 1 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 10.5 mA @ 120 Hz | 25 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
