Aluminum Electrolytic Capacitors(115368)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MALIEYN07LV518B42KCAP ALUM 18000UF 20% 6.3V SNAP |
2,164 | 0.00 |
RFQ |
Datasheet |
Bulk | EYN | Obsolete | 18000 µF | ±20% | 6.3 V | 33mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.85 A @ 120 Hz | - | - | - | 0.866 Dia (22.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
MALIEYN07LW247P02KCAP ALUM 47UF 20% SNAP |
2,288 | 0.00 |
RFQ |
Datasheet |
Bulk | EYN | Obsolete | 47 µF | ±20% | - | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Through Hole |
|
|
MALIEYN07LW268X02KCAP ALUM 68UF 20% SNAP |
2,948 | 0.00 |
RFQ |
Datasheet |
Bulk | EYN | Obsolete | 68 µF | ±20% | - | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | - | - | - | Through Hole |
|
USA1C220MDD1TECAP ALUM 22UF 20% 16V RADIAL |
3,875 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USA | Obsolete | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 44 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
|
USA1C470MDD1TPCAP ALUM 47UF 20% 16V RADIAL |
2,530 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USA | Obsolete | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 68 mA @ 120 Hz | 102 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | - | Through Hole |
|
|
USA1V4R7MDD1TPCAP ALUM 4.7UF 20% 35V RADIAL |
3,027 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USA | Obsolete | 4.7 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 24 mA @ 120 Hz | 36 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
USP1C470MDD1TPCAP ALUM 47UF 20% 16V RADIAL |
3,545 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USP | Obsolete | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 75 mA @ 120 Hz | 112.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | - | Through Hole |
|
USR1A101MDD1TPCAP ALUM 100UF 20% 10V RADIAL |
2,646 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USR | Obsolete | 100 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 87 mA @ 120 Hz | 130.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | - | Through Hole |
|
USR1E100MDD1TECAP ALUM 10UF 20% 25V RADIAL |
2,593 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USR | Obsolete | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 42 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
|
USR1E470MDD1TECAP ALUM 47UF 20% 25V RADIAL |
3,026 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USR | Obsolete | 47 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 71 mA @ 120 Hz | 106.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | - | Through Hole |
|
USR1V470MDD1TDCAP ALUM 47UF 20% 35V RADIAL |
3,351 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USR | Obsolete | 47 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 127.5 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
UST1A220MDD1TECAP ALUM 22UF 20% 10V RADIAL |
3,679 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UST | Obsolete | 22 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 57 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
UST1H010MDD1TECAP ALUM 1UF 20% 50V RADIAL |
2,343 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UST | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 10 mA @ 120 Hz | 15 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
|

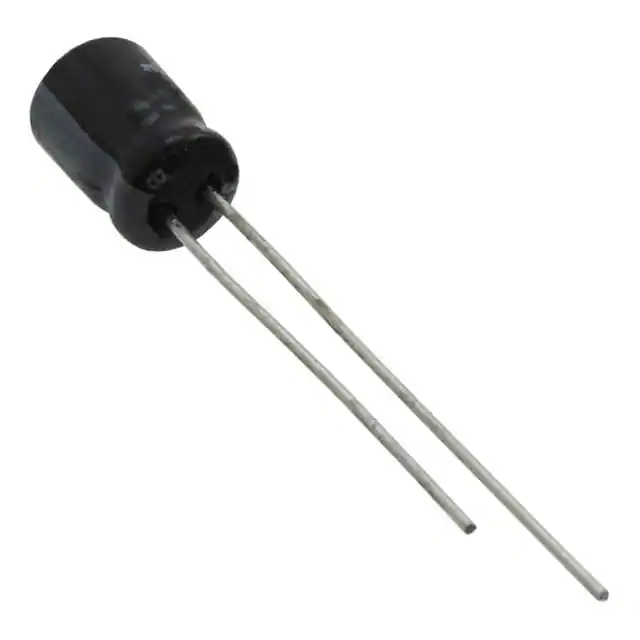

UST1V100MDD1TECAP ALUM 10UF 20% 35V RADIAL |
2,675 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UST | Obsolete | 10 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 36 mA @ 120 Hz | - | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
|
USV1C100MFD1TPCAP ALUM 10UF 20% 16V RADIAL |
2,346 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USV | Obsolete | 10 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 29 mA @ 120 Hz | 43.5 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
|
USV1E100MFD1TPCAP ALUM 10UF 20% 25V RADIAL |
3,708 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USV | Obsolete | 10 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 33 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
USV1V220MFD1TECAP ALUM 22UF 20% 35V RADIAL |
3,500 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USV | Obsolete | 22 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 85.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.315 (8.00mm) | - | Through Hole |
|
|
USV1V4R7MFD1TPCAP ALUM 4.7UF 20% 35V RADIAL |
2,375 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | USV | Obsolete | 4.7 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 24 mA @ 120 Hz | 36 mA @ 10 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
|
UUG1A103MNQ6ZDCAP ALUM 10000UF 20% 10V SMD |
3,374 | 0.00 |
RFQ |
Datasheet |
Tray | UUG | Obsolete | 10000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.53 A @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
|
|
UUG2G470MNQ6ZDCAP ALUM 47UF 20% 400V SMD |
3,746 | 0.00 |
RFQ |
Datasheet |
Tray | UUG | Obsolete | 47 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 430 mA @ 120 Hz | 688 mA @ 10 kHz | - | - | 0.709 Dia (18.00mm) | 0.886 (22.50mm) | 0.752 L x 0.752 W (19.10mm x 19.10mm) | Surface Mount |
