| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEV-HP1HR47RCAP ALUM 0.47UF 20% 50V SMD |
3,977 | 0.00 |
RFQ |
Tape & Reel (TR) | HB | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Bi-Polar | AEC-Q200 | Automotive | 5 mA @ 120 Hz | - | - | - | 0.157 Dia (4.00mm) | 0.228 (5.80mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount | |
|
ECE-A1HN010UBCAP ALUM 1UF 20% 50V RADIAL |
3,203 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | SU | Obsolete | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | 17 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|

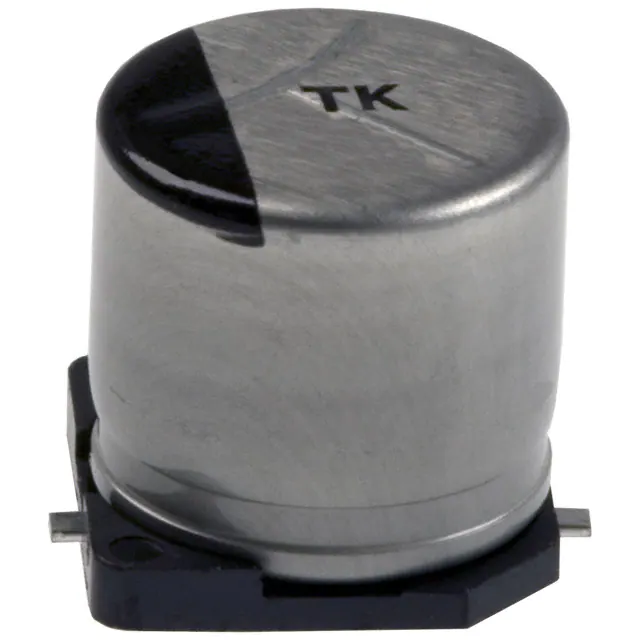

EEE-TKA472UAMCAP ALUM 4700UF 20% 10V SMD |
3,909 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TK | Obsolete | 4700 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | - | 1.1 A @ 100 kHz | - | - | 0.630 Dia (16.00mm) | 0.650 (16.50mm) | 0.669 L x 0.669 W (17.00mm x 17.00mm) | Surface Mount |
|
ECE-V1EA220WRCAP ALUM 22UF 20% 25V SMD |
2,050 | 0.00 |
RFQ |
Datasheet |
Bulk | VS | Obsolete | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | - | - | - | 0.197 Dia (5.00mm) | 0.213 (5.40mm) | 0.209 L x 0.209 W (5.30mm x 5.30mm) | Surface Mount |
|

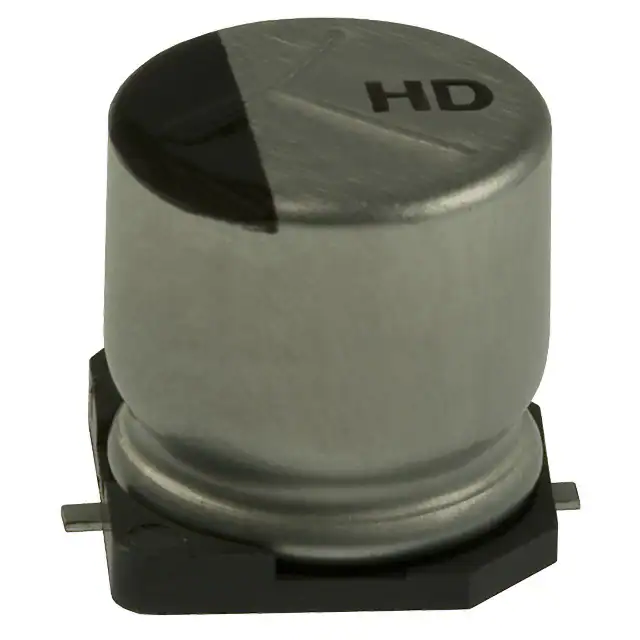

EEE-HD2A4R7PCAP ALUM 4.7UF 20% 100V SMD |
2,525 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HD | Obsolete | 4.7 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 50 mA @ 120 Hz | 85 mA @ 10 kHz | 1.5 Ohms | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

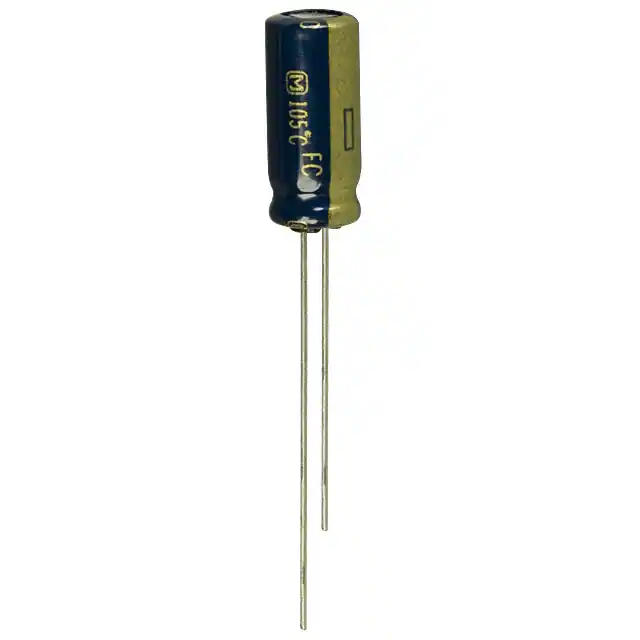

EEU-FC1E121HCAP ALUM 120UF 20% 25V RADIAL |
2,475 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | FC | Obsolete | 120 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 260 mA @ 120 Hz | 400 mA @ 100 kHz | 250 mOhms | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.591 (15.00mm) | - | Through Hole |
|
EET-UQ1C183JACAP ALUM 18000UF 20% 16V SNAP |
2,927 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UQ | Obsolete | 18000 µF | ±20% | 16 V | 46mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.57 A @ 120 Hz | 6.406 A @ 10 kHz | - | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EEU-FC1A470BCAP ALUM 47UF 20% 10V RADIAL |
3,487 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | FC | Obsolete | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 78 mA @ 120 Hz | 120 mA @ 100 kHz | 1.3 Ohms | 0.197 (5.00mm) | 0.157 Dia (4.00mm) | 0.433 (11.00mm) | - | Through Hole |
|
EEA-GA1HR10CAP ALUM 0.1UF 20% 50V RADIAL |
2,738 | 0.00 |
RFQ |
Datasheet |
Bulk | GA-A | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.1 mA @ 120 Hz | 1.7 mA @ 100 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
EEA-GA1HR47CAP ALUM 0.47UF 20% 50V RADIAL |
2,970 | 0.00 |
RFQ |
Datasheet |
Bulk | GA-A | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 5 mA @ 120 Hz | 7.75 mA @ 100 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
EEA-GA1HR68CAP ALUM 0.68UF 20% 50V RADIAL |
2,636 | 0.00 |
RFQ |
Datasheet |
Bulk | GA-A | Obsolete | 0.68 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 7 mA @ 120 Hz | 10.85 mA @ 100 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
EEA-GA1H1R0CAP ALUM 1UF 20% 50V RADIAL |
2,269 | 0.00 |
RFQ |
Datasheet |
Bulk | GA-A | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 10 mA @ 120 Hz | 15.5 mA @ 100 kHz | - | 0.059 (1.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECO-S2EP391CACAP ALUM 390UF 20% 250V SNAP |
2,457 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 390 µF | ±20% | 250 V | 468mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.91 A @ 120 Hz | 2.674 A @ 100 kHz | - | - | 0.984 Dia (25.00mm) | 1.378 (35.00mm) | - | Through Hole |
|
ECA-1HHG010ICAP ALUM 1UF 20% 50V RADIAL |
3,566 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | NHG-A | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 10 mA @ 120 Hz | 20 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHG0R1BCAP ALUM 0.1UF 20% 50V RADIAL |
2,219 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | NHG-A | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.1 mA @ 120 Hz | 2.2 A @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHG0R1ICAP ALUM 0.1UF 20% 50V RADIAL |
2,394 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | NHG-A | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.1 mA @ 120 Hz | 2.2 A @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHGR22ICAP ALUM 0.22UF 20% 50V RADIAL |
3,315 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | NHG-A | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.3 mA @ 120 Hz | 4.6 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHGR33BCAP ALUM 0.33UF 20% 50V RADIAL |
3,393 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | NHG-A | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3.5 mA @ 120 Hz | 7 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHGR33ICAP ALUM 0.33UF 20% 50V RADIAL |
3,019 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | NHG-A | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3.5 mA @ 120 Hz | 7 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHGR47BCAP ALUM 0.47UF 20% 50V RADIAL |
2,915 | 0.00 |
RFQ |
Datasheet |
Tape & Box (TB) | NHG-A | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 5 mA @ 120 Hz | 10 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
