| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

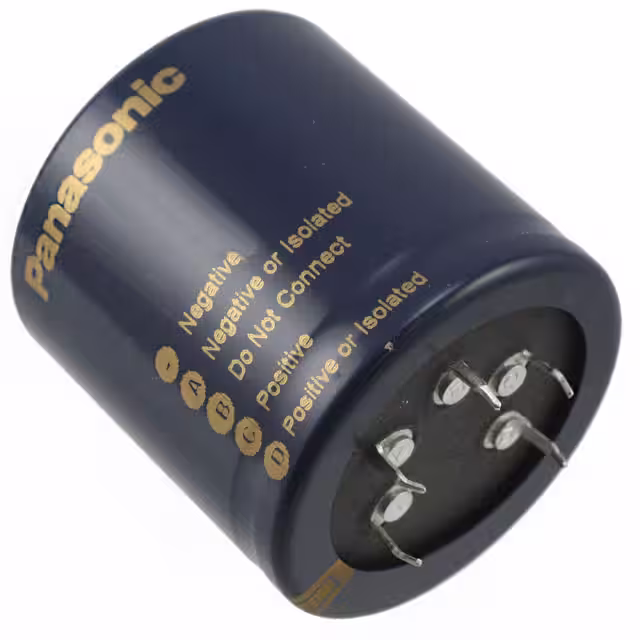

ECE-P2GP102HACAP ALUM 1000UF 20% 400V SNAP |
2,116 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1000 µF | ±20% | 400 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.76 A @ 120 Hz | 6.664 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
ECE-P2GP122HXCAP ALUM 1200UF 20% 400V SNAP |
2,102 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1200 µF | ±20% | 400 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.21 A @ 120 Hz | 7.294 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
ECE-P2GP152HXCAP ALUM 1500UF 20% 400V SNAP |
2,161 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1500 µF | ±20% | 400 V | 133mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.12 A @ 120 Hz | 8.568 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 2.480 (63.00mm) | - | Through Hole |
|
|
ECE-P2GP182HXCAP ALUM 1800UF 20% 400V SNAP |
2,498 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1800 µF | ±20% | 400 V | 111mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.09 A @ 120 Hz | 9.926 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 3.150 (80.00mm) | - | Through Hole |
|
|
ECE-P2GP222HXCAP ALUM 2200UF 20% 400V SNAP |
2,008 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 2200 µF | ±20% | 400 V | 90mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 8.13 A @ 120 Hz | 11.38 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 3.622 (92.00mm) | - | Through Hole |
|
|
ECE-P2GP272HACAP ALUM 2700UF 20% 400V SNAP |
2,546 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 2700 µF | ±20% | 400 V | 73mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 9.34 A @ 120 Hz | 13.08 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 4.134 (105.00mm) | - | Through Hole |
|
|
ECE-P2WP821HACAP ALUM 820UF 20% 450V SNAP |
2,706 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 820 µF | ±20% | 450 V | 263mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.31 A @ 120 Hz | 6.034 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
ECE-P2WP102HACAP ALUM 1000UF 20% 450V SNAP |
3,893 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1000 µF | ±20% | 450 V | 216mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.96 A @ 120 Hz | 6.944 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 2.480 (63.00mm) | - | Through Hole |
|
|
ECE-P2WP122HXCAP ALUM 1200UF 20% 450V SNAP |
3,345 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1200 µF | ±20% | 450 V | 180mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.43 A @ 120 Hz | 7.602 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 2.480 (63.00mm) | - | Through Hole |
|
|
ECE-P2WP152HXCAP ALUM 1500UF 20% 450V SNAP |
3,047 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1500 µF | ±20% | 450 V | 144mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.15 A @ 120 Hz | 8.61 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 3.150 (80.00mm) | - | Through Hole |
|
|
ECE-P2WP182HXCAP ALUM 1800UF 20% 450V SNAP |
3,198 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1800 µF | ±20% | 450 V | 120mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 7.02 A @ 120 Hz | 9.828 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 3.622 (92.00mm) | - | Through Hole |
|
|
ECE-P2HP561HACAP ALUM 560UF 20% 500V SNAP |
2,850 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 560 µF | ±20% | 500 V | 355mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.52 A @ 120 Hz | 4.928 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
ECE-P2HP681HXCAP ALUM 680UF 20% 500V SNAP |
2,658 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 680 µF | ±20% | 500 V | 293mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.88 A @ 120 Hz | 5.432 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 1.969 (50.00mm) | - | Through Hole |
|
|
ECE-P2HP821HACAP ALUM 820UF 20% 500V SNAP |
2,737 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 820 µF | ±20% | 500 V | 222mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.47 A @ 120 Hz | 6.258 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 2.480 (63.00mm) | - | Through Hole |
|
|
ECE-P2HP102HACAP ALUM 1000UF 20% 500V SNAP |
3,712 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1000 µF | ±20% | 500 V | 199mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.05 A @ 120 Hz | 7.07 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 3.150 (80.00mm) | - | Through Hole |
|
|
ECE-P2HP122HXCAP ALUM 1200UF 20% 500V SNAP |
2,351 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1200 µF | ±20% | 500 V | 166mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 5.35 A @ 120 Hz | 7.49 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 3.150 (80.00mm) | - | Through Hole |
|
|
ECE-P2HP152HACAP ALUM 1500UF 20% 500V SNAP |
2,619 | 0.00 |
RFQ |
Datasheet |
Bulk | T-UP | Obsolete | 1500 µF | ±20% | 500 V | 144mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 6.65 A @ 120 Hz | 9.31 A @ 10 kHz | - | 0.984 (25.00mm) | 1.969 Dia (50.00mm) | 4.134 (105.00mm) | - | Through Hole |
|

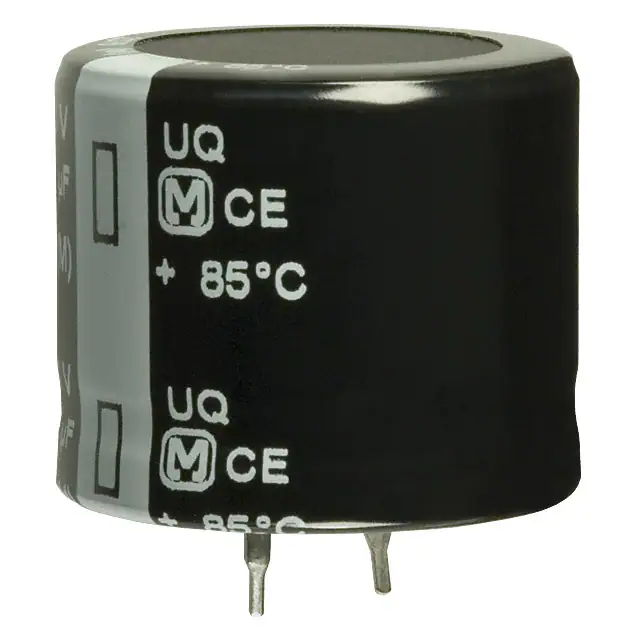

EET-UQ2E681DFCAP ALUM 680UF 20% 250V SNAP |
2,040 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UQ | Obsolete | 680 µF | ±20% | 250 V | 293mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.22 A @ 10 kHz | - | - | 1.181 Dia (30.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EEU-EB1J1R0SCAP ALUM 1UF 20% 63V RADIAL |
2,343 | 0.00 |
RFQ |
Datasheet |
Bulk | EB-A | Obsolete | 1 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 9 mA @ 120 Hz | 14.85 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
EEU-EB1J2R2SCAP ALUM 2.2UF 20% 63V RADIAL |
3,596 | 0.00 |
RFQ |
Datasheet |
Bulk | EB-A | Obsolete | 2.2 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 16.5 mA @ 120 Hz | 27.22 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
