| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

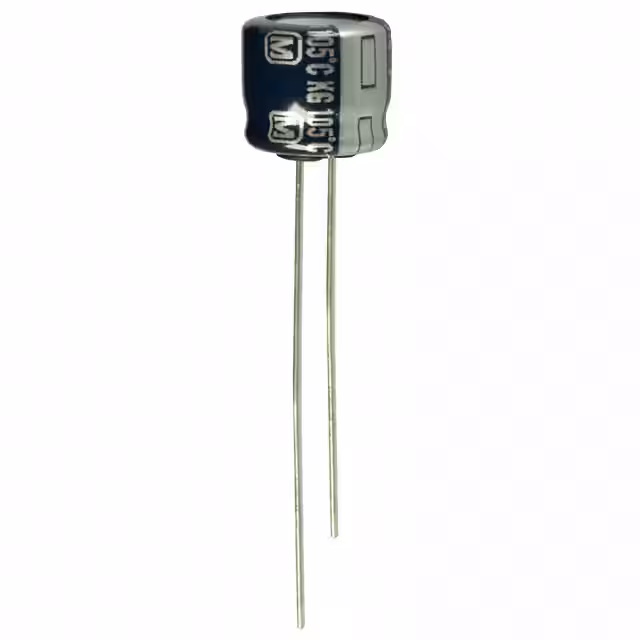

ECE-A1EKG680CAP ALUM 68UF 20% 25V RADIAL |
2,970 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 68 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 190 mA @ 100 kHz | 1.2 Ohms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECE-A1VKG330CAP ALUM 33UF 20% 35V RADIAL |
2,235 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 190 mA @ 100 kHz | 1.2 Ohms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECE-A1VKG470CAP ALUM 47UF 20% 35V RADIAL |
2,267 | 0.00 |
RFQ |
Datasheet |
Bulk | KG | Obsolete | 47 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | - | 190 mA @ 100 kHz | 1.2 Ohms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECA-1HMR47CAP ALUM 0.47UF 20% 50V RADIAL |
2,628 | 0.00 |
RFQ |
Datasheet |
Bulk | M-A | Obsolete | 0.47 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5 mA @ 120 Hz | 8.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECA-1HM010CAP ALUM 1UF 20% 50V RADIAL |
2,339 | 0.00 |
RFQ |
Datasheet |
Bulk | M-A | Obsolete | 1 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 mA @ 120 Hz | 17 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECA-2AMR47CAP ALUM 0.47UF 20% 100V RADIAL |
3,813 | 0.00 |
RFQ |
Datasheet |
Bulk | M-A | Obsolete | 0.47 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 17 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|

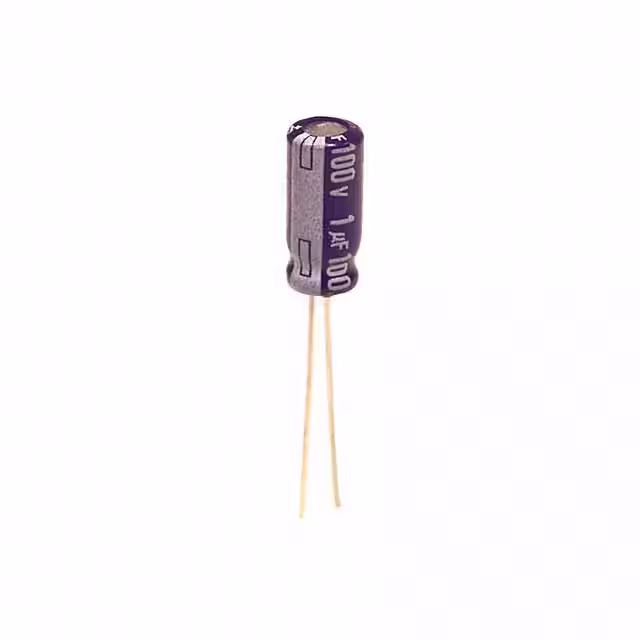

ECA-2AM010CAP ALUM 1UF 20% 100V RADIAL |
2,045 | 0.00 |
RFQ |
Datasheet |
Bulk | M-A | Obsolete | 1 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 34 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECA-2CM010CAP ALUM 1UF 20% 160V RADIAL |
2,788 | 0.00 |
RFQ |
Datasheet |
Bulk | M-A | Obsolete | 1 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 36 mA @ 120 Hz | 61.2 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
ECA-1HHG0R1CAP ALUM 0.1UF 20% 50V RADIAL |
3,803 | 0.00 |
RFQ |
Datasheet |
Bulk | NHG-A | Obsolete | 0.1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.1 mA @ 120 Hz | 2.2 A @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHGR22CAP ALUM 0.22UF 20% 50V RADIAL |
2,654 | 0.00 |
RFQ |
Datasheet |
Bulk | NHG-A | Obsolete | 0.22 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.3 mA @ 120 Hz | 4.6 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHGR33CAP ALUM 0.33UF 20% 50V RADIAL |
3,861 | 0.00 |
RFQ |
Datasheet |
Bulk | NHG-A | Obsolete | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 3.5 mA @ 120 Hz | 7 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHGR47CAP ALUM 0.47UF 20% 50V RADIAL |
3,341 | 0.00 |
RFQ |
Datasheet |
Bulk | NHG-A | Obsolete | 0.47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 5 mA @ 120 Hz | 10 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHG010CAP ALUM 1UF 20% 50V RADIAL |
3,123 | 0.00 |
RFQ |
Datasheet |
Bulk | NHG-A | Obsolete | 1 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 10 mA @ 120 Hz | 20 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-2AHGR47CAP ALUM 0.47UF 20% 100V RADIAL |
3,591 | 0.00 |
RFQ |
Datasheet |
Bulk | NHG-A | Obsolete | 0.47 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 9 mA @ 120 Hz | 18 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-2AHG010CAP ALUM 1UF 20% 100V RADIAL |
2,585 | 0.00 |
RFQ |
Datasheet |
Bulk | NHG-A | Obsolete | 1 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 14 mA @ 120 Hz | 28 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECA-2EHG010CAP ALUM 1UF 20% 250V RADIAL |
2,153 | 0.00 |
RFQ |
Datasheet |
Bulk | NHG-A | Obsolete | 1 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 17 mA @ 120 Hz | 25.5 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
ECO-S2WP181EACAP ALUM 180UF 20% 450V SNAP |
3,009 | 0.00 |
RFQ |
Datasheet |
Bulk | TS-UP | Obsolete | 180 µF | ±20% | 450 V | 921mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.89 A @ 100 kHz | - | 0.394 (10.00mm) | 1.378 Dia (35.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EEV-FC0J220RCAP ALUM 22UF 20% 6.3V SMD |
2,587 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | 22 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 45 mA @ 120 Hz | 60 mA @ 100 kHz | 3 Ohms | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEV-FC0J680PCAP ALUM 68UF 20% 6.3V SMD |
3,906 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | 68 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | - | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEV-FC0J101PCAP ALUM 100UF 20% 6.3V SMD |
3,770 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Obsolete | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 105 mA @ 120 Hz | 140 mA @ 100 kHz | 1 Ohms | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
