| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FC1E101SBCAP ALUM 100UF 20% 25V RADIAL |
2,725 | 0.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 100 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 188.5 mA @ 120 Hz | 290 mA @ 100 kHz | 350 mOhms | 0.197 (5.00mm) | 0.248 Dia (6.30mm) | 0.579 (14.70mm) | - | Through Hole |
|

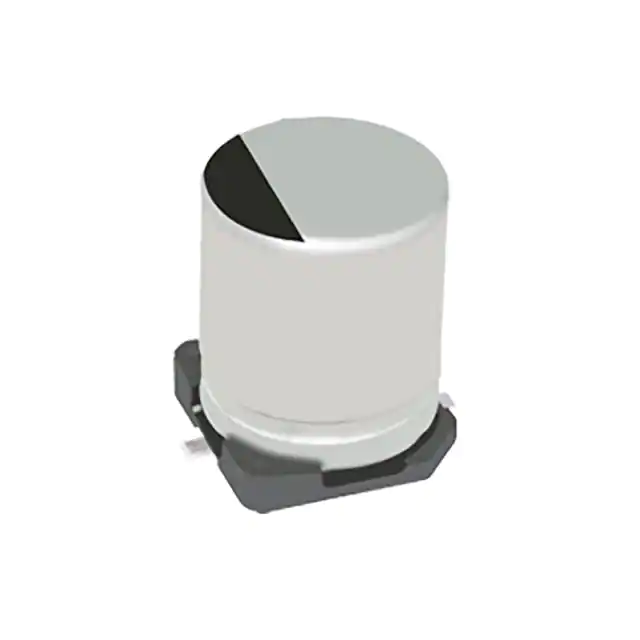

EEE-FN0J100RCAP ALUM 10UF 20% 6.3V SMD |
4,636 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 10 µF | ±20% | 6.3 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|

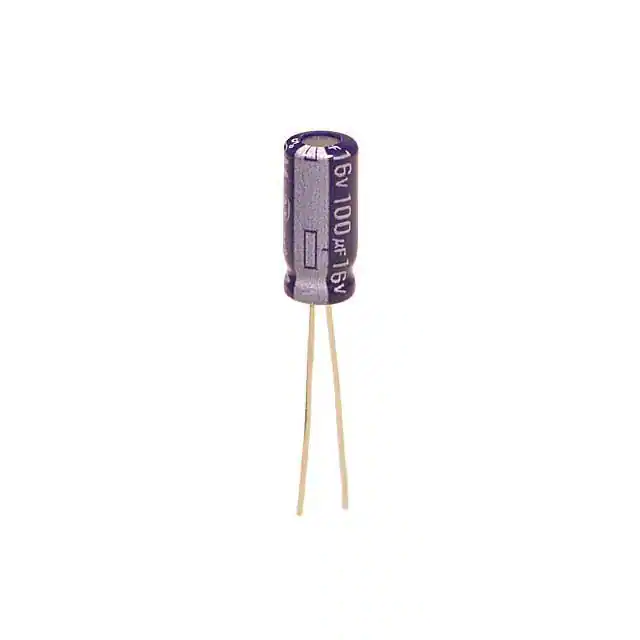

ECA-1CM101BCAP ALUM 100UF 20% 16V RADIAL |
36,582 | 0.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 306 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECA-1CM101ICAP ALUM 100UF 20% 16V RADIAL |
64,000 | 0.06 |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 306 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECE-A1HKS2R2BCAP ALUM 2.2UF 20% 50V RADIAL |
7,831 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | KS | Active | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 16 mA @ 120 Hz | 27.2 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.157 Dia (4.00mm) | 0.197 (5.00mm) | - | Through Hole |
|

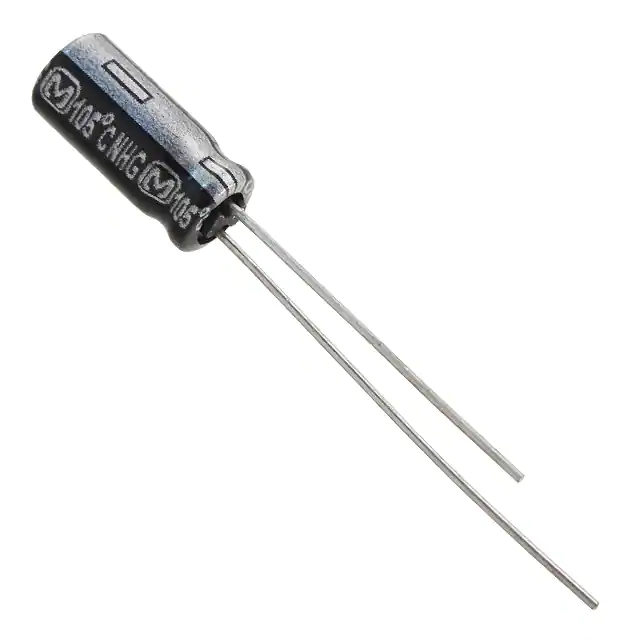

ECA-1HHG100BCAP ALUM 10UF 20% 50V RADIAL |
8,822 | 0.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 39 mA @ 120 Hz | 78 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1EM220ICAP ALUM 22UF 20% 25V RADIAL |
29,537 | 0.25 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 22 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | 153 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1CM470BCAP ALUM 47UF 20% 16V RADIAL |
29,823 | 0.27 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 221 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1CM100ICAP ALUM 10UF 20% 16V RADIAL |
16,615 | 0.27 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 51 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1VM100ICAP ALUM 10UF 20% 35V RADIAL |
13,797 | 0.28 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 10 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 102 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1EM100BCAP ALUM 10UF 20% 25V RADIAL |
6,289 | 0.28 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 85 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEE-1HA2R2SRCAP ALUM 2.2UF 20% 50V SMD |
1,096 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Not For New Designs | 2.2 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 8 mA @ 120 Hz | 27.2 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
EEE-HA1E4R7RCAP ALUM 4.7UF 20% 25V SMD |
1,098 | 0.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 4.7 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 22 mA @ 120 Hz | 37.4 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
ECA-1JM100ICAP ALUM 10UF 20% 63V RADIAL |
3,267 | 0.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 10 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECE-A1VKS4R7ICAP ALUM 4.7UF 20% 35V RADIAL |
19,453 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | KS | Active | 4.7 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 22 mA @ 120 Hz | 37.4 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.157 Dia (4.00mm) | 0.236 (6.00mm) | - | Through Hole |
|
|
ECE-A1CKS100ICAP ALUM 10UF 20% 16V RADIAL |
7,998 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | KS | Active | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 47.6 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.157 Dia (4.00mm) | 0.236 (6.00mm) | - | Through Hole |
|
ECE-A0JKA101ICAP ALUM 100UF 20% 6.3V RADIAL |
4,310 | 0.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | KA | Active | 100 µF | ±20% | 6.3 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 71 mA @ 120 Hz | 120.7 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.315 (8.00mm) | - | Through Hole |
|
|
ECA-2AM100BCAP ALUM 10UF 20% 100V RADIAL |
23,481 | 0.34 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | M-A | Active | 10 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECA-1HHG2R2ICAP ALUM 2.2UF 20% 50V RADIAL |
5,153 | 0.30 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 36 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEA-GA1E100HCAP ALUM 10UF 20% 25V RADIAL |
27,097 | 0.32 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 10 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 33 mA @ 120 Hz | 51.15 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.157 Dia (4.00mm) | 0.276 (7.00mm) | - | Through Hole |
