| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECA-2GM2R2CAP ALUM 2.2UF 20% 400V RADIAL |
2,604 | 0.55 |
RFQ |
Datasheet |
Bulk | M-A | Active | 2.2 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 85 mA @ 10 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole |
|
EEE-TP1C221APCAP ALUM 220UF 20% 16V SMD |
3,004 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 220 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TP1E101APCAP ALUM 100UF 20% 25V SMD |
3,617 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 100 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TP1V101APCAP ALUM 100UF 20% 35V SMD |
2,205 | 1.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP | Active | 100 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 175.5 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-FR1E152BCAP ALUM 1500UF 20% 25V RADIAL |
2,091 | 1.24 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 1500 µF | ±20% | 25 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
Series.jpg)
|
EEE-FT1E561ULCAP ALUM 560UF 20% 25V SMD |
3,910 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Halogen Free | Active | 560 µF | ±20% | 25 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-FT1C821ULCAP ALUM 820UF 20% 16V SMD |
3,274 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Halogen Free | Active | 820 µF | ±20% | 16 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

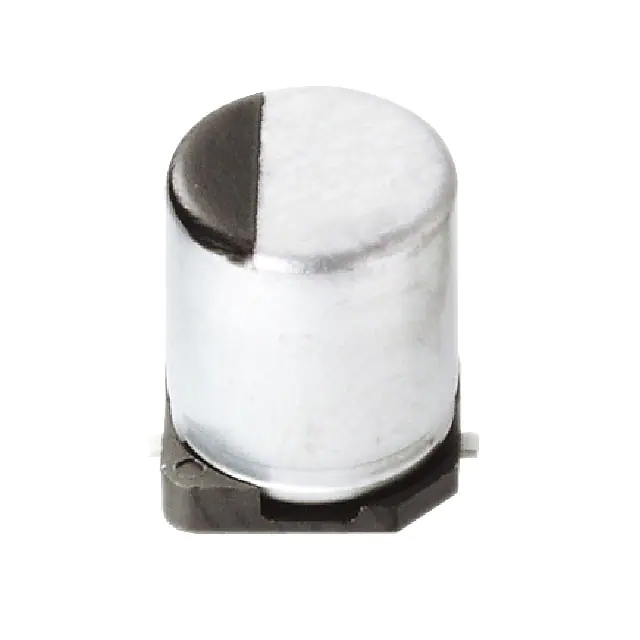

EEE-TC1A331UPCAP ALUM 330UF 20% 10V SMD |
3,392 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 330 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1A471UPCAP ALUM 470UF 20% 10V SMD |
3,032 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 470 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1A561UPCAP ALUM 560UF 20% 10V SMD |
2,982 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 560 µF | ±20% | 10 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1C331UPCAP ALUM 330UF 20% 16V SMD |
3,550 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 330 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1C391UPCAP ALUM 390UF 20% 16V SMD |
3,816 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 390 µF | ±20% | 16 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1E221UPCAP ALUM 220UF 20% 25V SMD |
2,134 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 220 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1E331UPCAP ALUM 330UF 20% 25V SMD |
3,222 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 330 µF | ±20% | 25 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TC1V221UPCAP ALUM 220UF 20% 35V SMD |
3,706 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TCU | Active | 220 µF | ±20% | 35 V | 200mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 266.5 mA @ 120 Hz | 410 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-FS1C472SBCAP ALUM 4700UF 20% 16V RADIAL |
2,865 | 2.25 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FS1V182SBCAP ALUM 1800UF 20% 35V RADIAL |
3,208 | 2.25 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 1800 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.64 A @ 120 Hz | 3.3 A @ 100 kHz | 17 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FC1J221SCAP ALUM 220UF 20% 63V RADIAL |
3,442 | 1.19 |
RFQ |
Datasheet |
Bulk | FC | Active | 220 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 835.3 mA @ 120 Hz | 1.285 A @ 100 kHz | 85 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
EEU-FC1H331CAP ALUM 330UF 20% 50V RADIAL |
3,589 | 1.19 |
RFQ |
Datasheet |
Bulk | FC | Active | 330 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 962 mA @ 120 Hz | 1.48 A @ 100 kHz | 63 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEE-FT0J152GPCAP ALUM 1500UF 20% 6.3V SMD |
2,371 | 1.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT | Active | 1500 µF | ±20% | 6.3 V | 80mOhm @ 100kHz | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 595 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
