| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FS1C821CAP ALUM 820UF 20% 16V RADIAL |
237 | 0.91 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 820 µF | ±20% | 16 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 967.5 mA @ 120 Hz | 1.29 A @ 100 kHz | 43 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
|

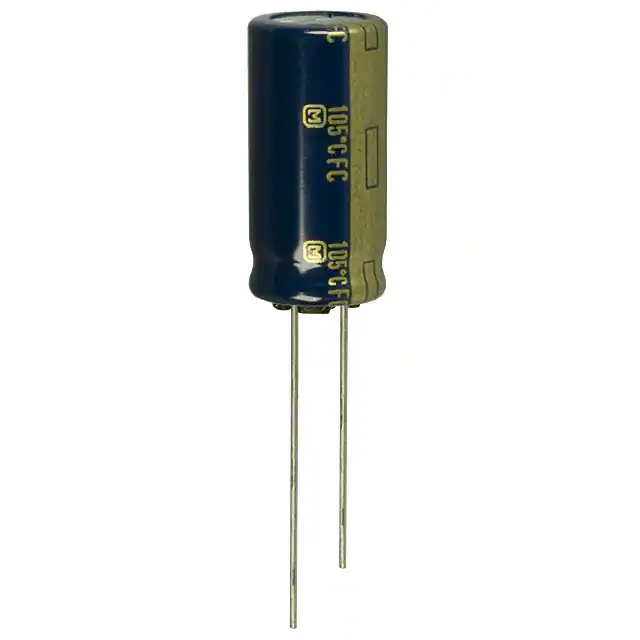

EEU-FC1A122CAP ALUM 1200UF 20% 10V RADIAL |
5,816 | 0.92 |
RFQ |
Datasheet |
Bulk | FC | Active | 1200 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 976 mA @ 120 Hz | 1.22 A @ 100 kHz | 52 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEU-FC1V271CAP ALUM 270UF 20% 35V RADIAL |
2,766 | 0.93 |
RFQ |
Datasheet |
Bulk | FC | Active | 270 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 682.5 mA @ 120 Hz | 1.05 A @ 100 kHz | 68 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
EEU-FC1E102BCAP ALUM 1000UF 20% 25V RADIAL |
2,070 | 1.29 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 1000 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.241 A @ 120 Hz | 1.655 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|

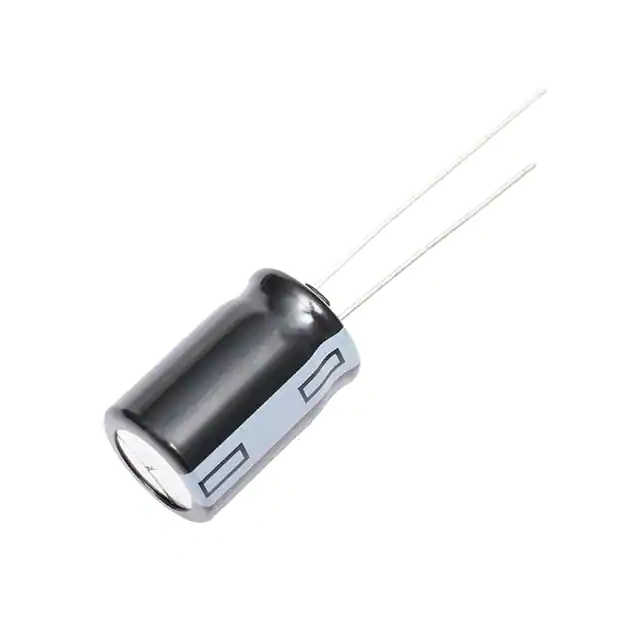

EEU-FP1E681BCAP ALUM 680UF 20% 25V RADIAL |
2,984 | 1.31 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FP | Active | 680 µF | ±20% | 25 V | 68mOhm @ 100kHz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.625 A @ 120 Hz | 2.5 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|
EEU-FM0J222LCAP ALUM 2200UF 20% 6.3V RADIAL |
3,421 | 1.02 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 2200 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.976 A @ 120 Hz | 2.47 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-ED2C220CAP ALUM 22UF 20% 160V RADIAL |
1,431 | 1.02 |
RFQ |
Datasheet |
Bulk | ED-A | Active | 22 µF | ±20% | 160 V | - | 8000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEU-EB2G100CAP ALUM 10UF 20% 400V RADIAL |
26,472 | 1.04 |
RFQ |
Datasheet |
Bulk | EB-A | Active | 10 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 250 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ECA-1CM222CAP ALUM 2200UF 20% 16V RADIAL |
690 | 1.06 |
RFQ |
Datasheet |
Bulk | M-A | Active | 2200 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.7 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
ECA-1HHG102BCAP ALUM 1000UF 20% 50V RADIAL |
11,062 | 1.34 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 120 Hz | 1.093 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-FM1V681CAP ALUM 680UF 20% 35V RADIAL |
11,500 | 1.15 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.95 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|

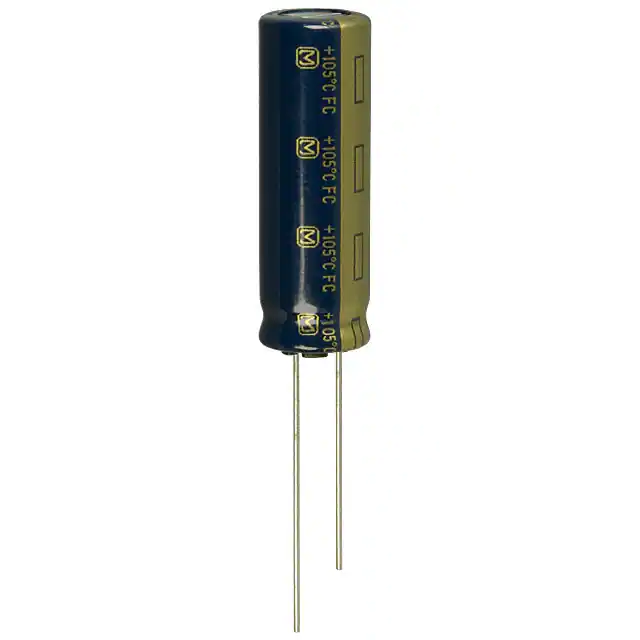

EEU-FC1E102LCAP ALUM 1000UF 20% 25V RADIAL |
5,488 | 1.18 |
RFQ |
Datasheet |
Bulk | FC | Active | 1000 µF | ±20% | 25 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.361 A @ 120 Hz | 1.815 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.181 (30.00mm) | - | Through Hole |
|
EEA-GA1C101CAP ALUM 100UF 20% 16V RADIAL |
3,976 | 0.62 |
RFQ |
Datasheet |
Bulk | GA-A | Active | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 186 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
|
ECA-1HM102CAP ALUM 1000UF 20% 50V RADIAL |
3,612 | 1.19 |
RFQ |
Datasheet |
Bulk | M-A | Active | 1000 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.785 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ECA-2WM100CAP ALUM 10UF 20% 450V RADIAL |
3,328 | 1.20 |
RFQ |
Datasheet |
Bulk | M-A | Active | 10 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 221 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
ECA-2AM221CAP ALUM 220UF 20% 100V RADIAL |
3,295 | 1.20 |
RFQ |
Datasheet |
Bulk | M-A | Active | 220 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 935 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-EB1V102CAP ALUM 1000UF 20% 35V RADIAL |
1,116 | 1.24 |
RFQ |
Datasheet |
Bulk | EB-A | Active | 1000 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 586 mA @ 120 Hz | 673.9 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEV-TG1C471QCAP ALUM 470UF 20% 16V SMD |
1,716 | 2.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TG | Active | 470 µF | ±20% | 16 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 520 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|

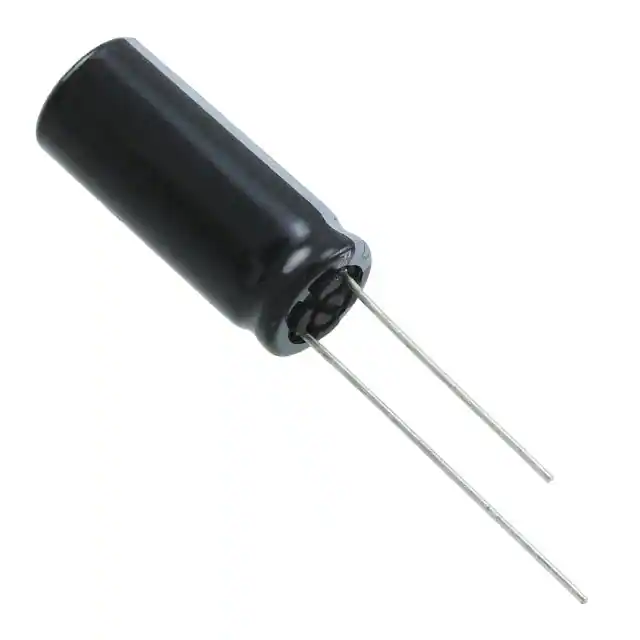

EEU-FS1C222LCAP ALUM 2200UF 20% 16V RADIAL |
1,676 | 1.25 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 2200 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.976 A @ 120 Hz | 2.47 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-HD1C101CAP ALUM 100UF 20% 16V RADIAL |
3,600 | 0.65 |
RFQ |
Datasheet |
Bulk | HD | Active | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 165 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
