| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-HB1C470APCAP ALUM 47UF 20% 16V SMD |
3,051 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 47 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 70 mA @ 120 Hz | 119 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-HB1E220APCAP ALUM 22UF 20% 25V SMD |
3,305 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 22 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 55 mA @ 120 Hz | 93.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-HB1H100APCAP ALUM 10UF 20% 50V SMD |
3,875 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 35 mA @ 120 Hz | 59.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEE-HB1V220APCAP ALUM 22UF 20% 35V SMD |
2,223 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HB | Active | 22 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 55 mA @ 120 Hz | 93.5 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.228 (5.80mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|

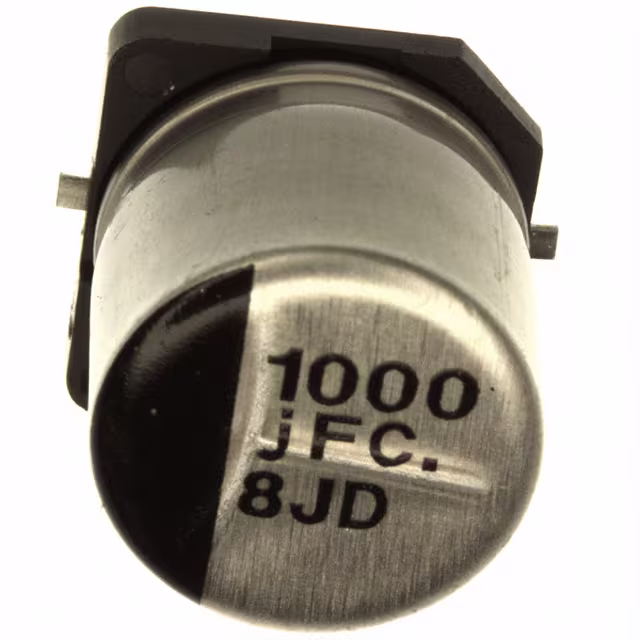

EEE-FC0J102APCAP ALUM 1000UF 20% 6.3V SMD |
2,727 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEE-FC1A471APCAP ALUM 470UF 20% 10V SMD |
2,104 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 470 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FC1A102APCAP ALUM 1000UF 20% 10V SMD |
2,342 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 1000 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FC1C221APCAP ALUM 220UF 20% 16V SMD |
3,397 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FC1C471APCAP ALUM 470UF 20% 16V SMD |
3,960 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 470 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FC1E221APCAP ALUM 220UF 20% 25V SMD |
3,607 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FC1V101APCAP ALUM 100UF 20% 35V SMD |
2,154 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-FC1V221APCAP ALUM 220UF 20% 35V SMD |
3,950 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FC | Not For New Designs | 220 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 502.5 mA @ 120 Hz | 670 mA @ 100 kHz | 150 mOhms | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
ECE-A1CN330UCAP ALUM 33UF 20% 16V RADIAL |
3,447 | 0.44 |
RFQ |
Datasheet |
Bulk | SU | Active | 33 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 80 mA @ 120 Hz | 136 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEE-HAV330WAPCAP ALUM 33UF 20% 35V SMD |
2,437 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Active | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 42 mA @ 120 Hz | 71.4 mA @ 10 kHz | - | - | 0.248 Dia (6.30mm) | 0.213 (5.40mm) | 0.260 L x 0.260 W (6.60mm x 6.60mm) | Surface Mount |
|
|
ECE-A1AN220UCAP ALUM 22UF 20% 10V RADIAL |
1,784 | 0.44 |
RFQ |
Datasheet |
Bulk | SU | Active | 22 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | - | 102 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECE-A1CN100UCAP ALUM 10UF 20% 16V RADIAL |
2,607 | 0.44 |
RFQ |
Datasheet |
Bulk | SU | Active | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 40 mA @ 120 Hz | 68 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECE-A1CN220UCAP ALUM 22UF 20% 16V RADIAL |
6,391 | 0.44 |
RFQ |
Datasheet |
Bulk | SU | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 60 mA @ 120 Hz | 102 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
|
ECE-A1EN100UCAP ALUM 10UF 20% 25V RADIAL |
5,329 | 0.44 |
RFQ |
Datasheet |
Bulk | SU | Active | 10 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 45 mA @ 120 Hz | 76.5 mA @ 10 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
ECA-0JHG471CAP ALUM 470UF 20% 6.3V RADIAL |
2,987 | 0.44 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 470 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 230 mA @ 120 Hz | 345 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
|
|
ECA-2CHG2R2CAP ALUM 2.2UF 20% 160V RADIAL |
2,309 | 0.44 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 2.2 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 25 mA @ 120 Hz | 37.5 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.480 (12.20mm) | - | Through Hole |
