| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FC2A120BCAP ALUM 12UF 20% 100V RADIAL |
2,175 | 0.48 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 12 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 74.1 mA @ 120 Hz | 114 mA @ 100 kHz | 1.8 Ohms | 0.197 (5.00mm) | 0.248 Dia (6.30mm) | 0.579 (14.70mm) | - | Through Hole |
|
EEE-HA0J102PCAP ALUM 1000UF 20% 6.3V SMD |
3,468 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 1000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 400 mA @ 120 Hz | 680 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HA1A471PCAP ALUM 470UF 20% 10V SMD |
3,406 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 470 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 270 mA @ 120 Hz | 459 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HA1C221PCAP ALUM 220UF 20% 16V SMD |
2,506 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 220 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 210 mA @ 120 Hz | 357 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HA1C331PCAP ALUM 330UF 20% 16V SMD |
2,312 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 330 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 230 mA @ 120 Hz | 391 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HA1E221PCAP ALUM 220UF 20% 25V SMD |
2,041 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 220 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 190 mA @ 120 Hz | 323 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HA1H470PCAP ALUM 47UF 20% 50V SMD |
3,269 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 47 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 100 mA @ 120 Hz | 170 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEE-HA1V101PCAP ALUM 100UF 20% 35V SMD |
2,224 | 0.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 100 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 160 mA @ 120 Hz | 272 mA @ 10 kHz | - | - | 0.394 Dia (10.00mm) | 0.402 (10.20mm) | 0.406 L x 0.406 W (10.30mm x 10.30mm) | Surface Mount |
|
EEE-FN1C220RCAP ALUM 22UF 20% 16V SMD |
2,599 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 22 µF | ±20% | 16 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-FN1A220RCAP ALUM 22UF 20% 10V SMD |
2,242 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 22 µF | ±20% | 10 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-FN1A330RCAP ALUM 33UF 20% 10V SMD |
2,774 | 0.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FN | Active | 33 µF | ±20% | 10 V | 1.35Ohm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 58.5 mA @ 120 Hz | 90 mA @ 100 kHz | - | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount |
|
|
EEE-HA2A220UPCAP ALUM 22UF 20% 100V SMD |
3,968 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HA | Not For New Designs | 22 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 55 mA @ 120 Hz | 93.5 mA @ 10 kHz | - | - | 0.315 Dia (8.00mm) | 0.402 (10.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|

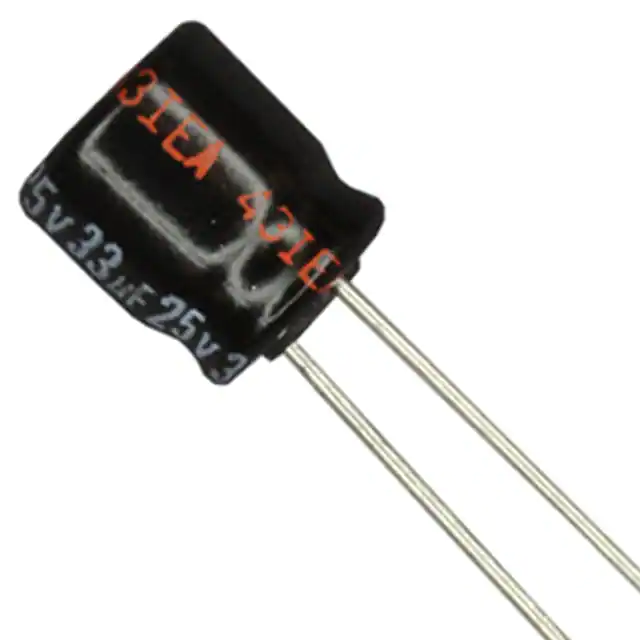

ECE-A1EKA330CAP ALUM 33UF 20% 25V RADIAL |
2,900 | 0.35 |
RFQ |
Datasheet |
Bulk | KA | Active | 33 µF | ±20% | 25 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.276 (7.00mm) | - | Through Hole |
|

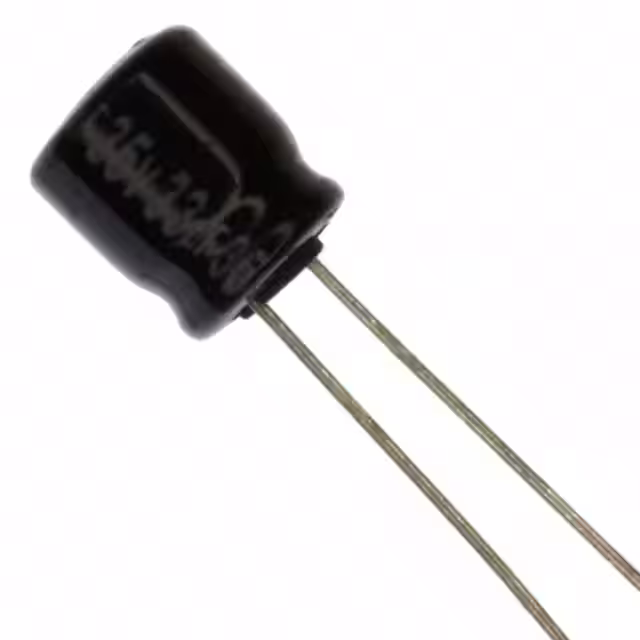

ECE-A1VKA330CAP ALUM 33UF 20% 35V RADIAL |
2,154 | 0.35 |
RFQ |
Datasheet |
Bulk | KA | Active | 33 µF | ±20% | 35 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 110.5 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.276 (7.00mm) | - | Through Hole |
|
ECA-2AHG4R7CAP ALUM 4.7UF 20% 100V RADIAL |
14,600 | 0.35 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 4.7 µF | ±20% | 100 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 76 mA @ 100 kHz | - | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
|
EEE-TG1A221UPCAP ALUM 220UF 20% 10V SMD |
2,096 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TG | Active | 220 µF | ±20% | 10 V | 1Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TG1H330UPCAP ALUM 33UF 20% 50V SMD |
4,215 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TG | Active | 33 µF | ±20% | 50 V | 1.6Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 52 mA @ 120 Hz | 80 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TG1A101PCAP ALUM 100UF 20% 10V SMD |
2,535 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TG | Active | 100 µF | ±20% | 10 V | 1Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TG1E470PCAP ALUM 47UF 20% 25V SMD |
2,389 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TG | Active | 47 µF | ±20% | 25 V | 1Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 65 mA @ 120 Hz | 100 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEE-TG1H220PCAP ALUM 22UF 20% 50V SMD |
2,337 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TG | Active | 22 µF | ±20% | 50 V | 1.6Ohm @ 100kHz | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 52 mA @ 120 Hz | 80 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.244 (6.20mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
