| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW-07-530-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
2,490 | 19.63 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Warble, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
|
LW-07-530-Q(S)BUZZER PIEZO 35.81MM PNL MNT |
3,970 | 19.63 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Warble, Slow | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|

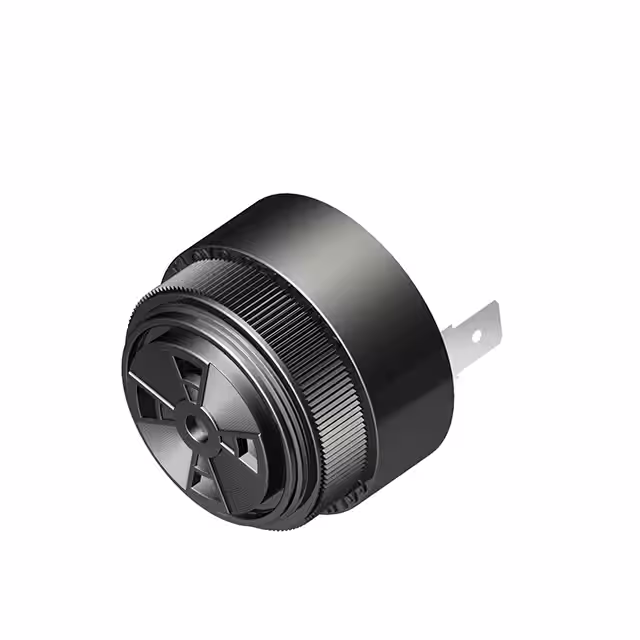

LT-07-530-QBUZZER PIEZO 35.81MM PNL MNT |
995 | 19.63 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Staccato Tone | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
|
LB-07-530-S(M)BUZZER PIEZO 35.81MM PNL MNT |
2,380 | 19.76 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Medium | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
|
LB-07-530-S(S)BUZZER PIEZO 35.81MM PNL MNT |
3,992 | 19.76 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Slow | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
|
LB-07-530-S(F)BUZZER PIEZO 35.81MM PNL MNT |
999 | 19.76 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
|
LT-07-530-SBUZZER PIEZO 35.81MM PNL MNT |
2,818 | 19.85 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Staccato Tone | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
|
LO-07-530-SBUZZER PIEZO 35.81MM PNL MNT |
2,113 | 19.85 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Whooping | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
|
LW-07-530-S(S)BUZZER PIEZO 35.81MM PNL MNT |
2,111 | 19.85 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Warble, Slow | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
|
LS-07-530-SBUZZER PIEZO 35.81MM PNL MNT |
2,219 | 19.85 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Siren | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|

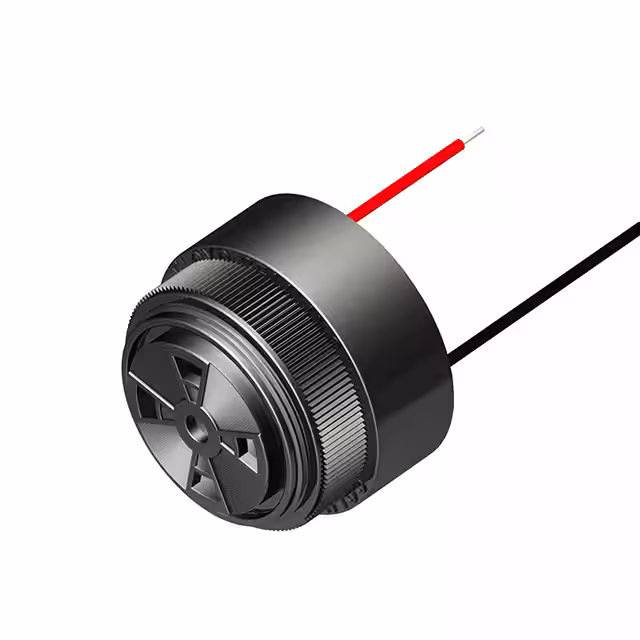

LB-V07-530-W(F)BUZZER PIEZO 35.81MM PNL MNT |
2,758 | 20.16 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|
|
LC-V07-530-WBUZZER PIEZO 35.81MM PNL MNT |
3,137 | 20.16 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Single Tone | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|
|
LB-V07-530-W(S)BUZZER PIEZO 35.81MM PNL MNT |
3,408 | 20.16 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Slow | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|
|
LB-V07-530-W(M)BUZZER PIEZO 35.81MM PNL MNT |
999 | 20.16 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Medium | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|
|
LW-V07-530-W(S)BUZZER PIEZO 35.81MM PNL MNT |
3,629 | 20.26 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Warble, Slow | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|
|
LO-V07-530-WBUZZER PIEZO 35.81MM PNL MNT |
3,922 | 20.26 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Whooping | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|
|
LT-V07-530-WBUZZER PIEZO 35.81MM PNL MNT |
2,723 | 20.26 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Staccato Tone | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|
|
LW-V07-530-W(F)BUZZER PIEZO 35.81MM PNL MNT |
3,847 | 20.26 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Warble, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|
|
LS-V07-530-WBUZZER PIEZO 35.81MM PNL MNT |
999 | 20.26 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Siren | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.410 Dia (35.81mm) |
|

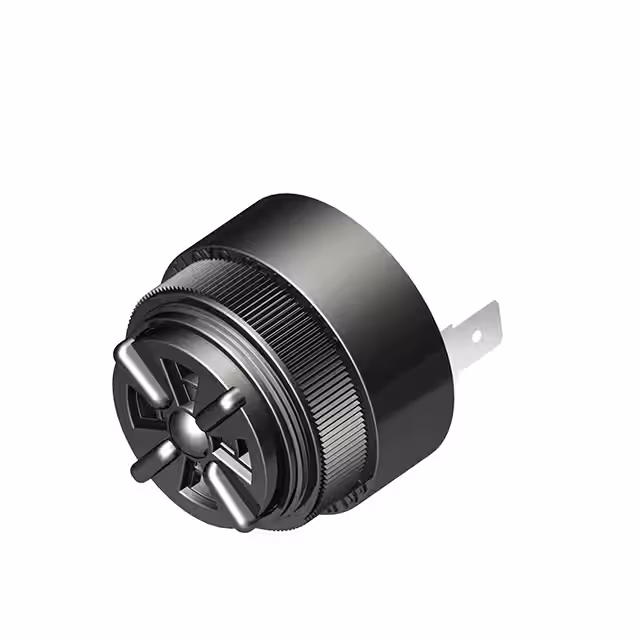

LB-V07-530-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
3,067 | 20.30 |
RFQ |
Datasheet |
Bulk | AudioLarm II | Active | Indicator, Internally Driven | DC | - | 5 ~ 30V | 2.9kHz | Piezo | Pulse, Fast | - | 85dB @ 30V, 61cm | 2 ~ 20mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
