Alarms, Buzzers, and Sirens(4485)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DriverCircuitry | InputType | Voltage-Rated | VoltageRange | Frequency | Technology | OperatingMode | Duration | SoundPressureLevel(SPL) | Current-Supply | PortLocation | OperatingTemperature | ApprovalAgency | Ratings | IngressProtection | MountingType | Termination | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
UW-09-515-Q(S)BUZZER PIEZO 35.81MM PNL MNT |
3,303 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Warble, Slow | - | 109dB @ 15V, 61cm | 35 ~ 80mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
D.jpg)
|

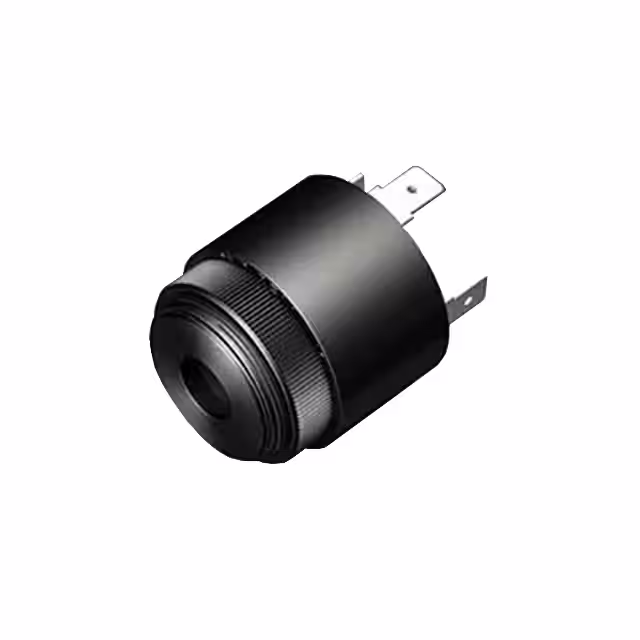

UW-09-515-Q(F)DBUZZER PIEZO 35.81MM PNL MNT |
3,031 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Single Tone, Warble, Fast | - | 109dB @ 15V, 61cm | 35 ~ 80mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
D.jpg)
|
UW-09-515-Q(S)DBUZZER PIEZO 35.81MM PNL MNT |
3,244 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Single Tone, Warble, Slow | - | 109dB @ 15V, 61cm | 35 ~ 80mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
D.jpg)
|
UB-09-628-Q(S)DBUZZER PIEZO 35.81MM PNL MNT |
3,128 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Single Tone, Pulse, Slow | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
D.jpg)
|
UW-09-628-Q(S)DBUZZER PIEZO 35.81MM PNL MNT |
3,906 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Single Tone, Warble, Slow | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
D.jpg)
|
UB-09-515-Q(F)DBUZZER PIEZO 35.81MM PNL MNT |
2,149 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Single Tone, Pulse, Fast | - | 109dB @ 15V, 61cm | 30 ~ 60mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
UB-09-628-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
3,025 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Pulse, Fast | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
UW-09-628-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
2,679 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Warble Fast | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
UB-09-628-Q(S)BUZZER PIEZO 35.81MM PNL MNT |
2,320 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Pulse, Slow | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
UW-09-515-Q(F)BUZZER PIEZO 35.81MM PNL MNT |
999 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Warble Fast | - | 109dB @ 15V, 61cm | 35 ~ 80mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
UW-09-628-Q(S)BUZZER PIEZO 35.81MM PNL MNT |
499 | 25.34 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Warble, Slow | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
UO-09-515-QBUZZER PIEZO 35.81MM PNL MNT |
3,564 | 25.47 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Whooping | - | 109dB @ 15V, 61cm | 30 ~ 70mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
UT-09-515-QBUZZER PIEZO 35.81MM PNL MNT |
2,858 | 25.47 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Staccato Tone | - | 109dB @ 15V, 61cm | 30 ~ 70mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|

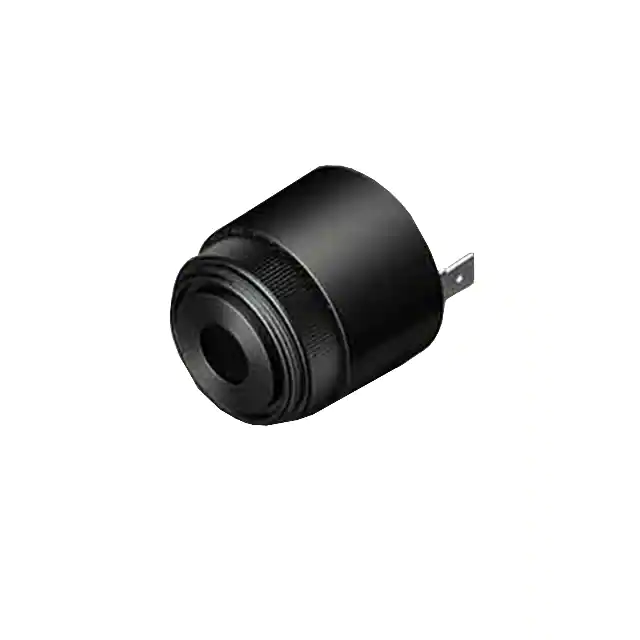

US-09-628-QBUZZER PIEZO 35.81MM PNL MNT |
999 | 25.47 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Siren | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
UT-09-628-QBUZZER PIEZO 35.81MM PNL MNT |
998 | 25.47 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Staccato Tone | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
US-09-515-QBUZZER PIEZO 35.81MM PNL MNT |
996 | 25.47 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Siren | - | 109dB @ 15V, 61cm | 30 ~ 70mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
|
UO-09-628-QBUZZER PIEZO 35.81MM PNL MNT |
995 | 25.47 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Whooping | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
.jpg)
|
UW-09-515-S(S)BUZZER PIEZO 35.81MM PNL MNT |
3,598 | 25.62 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Warble, Slow | - | 109dB @ 15V, 61cm | 35 ~ 80mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
D.jpg)
|

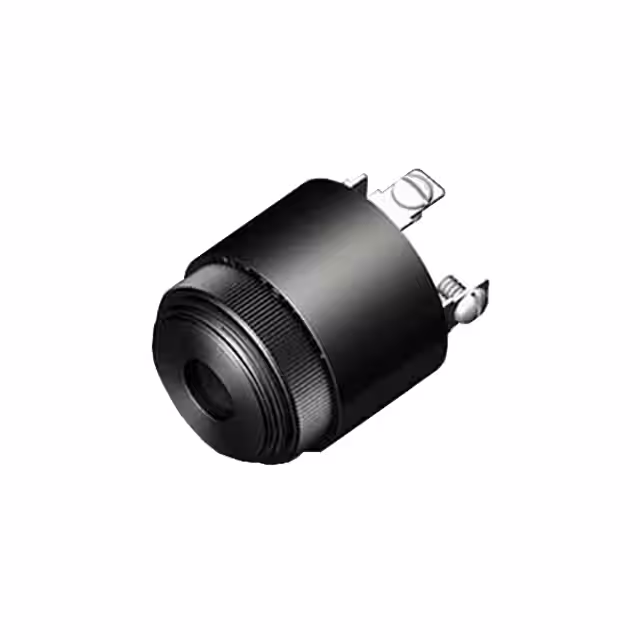

UB-09-515-S(F)DBUZZER PIEZO 35.81MM PNL MNT |
3,417 | 25.62 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.1kHz | Piezo | Single Tone, Pulse, Fast | - | 109dB @ 15V, 61cm | 30 ~ 60mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
D.jpg)
|
UW-09-628-S(F)DBUZZER PIEZO 35.81MM PNL MNT |
2,291 | 25.62 |
RFQ |
Datasheet |
Bulk | Ultra | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.1kHz | Piezo | Single Tone, Warble, Fast | - | 109dB @ 28V, 61cm | 20 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250 (6.35mm) | 1.410 Dia (35.81mm) |
