| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | RegionUtilized | Form | InputType | Voltage-Input | Voltage-Output | Current-Output(Max) | Power(Watts) | NoLoadPowerConsumption | Polarization | Applications | Efficiency | OperatingTemperature | OutputConnector | CordLength | InputConnector | Features | Size/Dimension | ApprovalAgency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI200G-18-U2-P51AC/DC DESKTOP ADAPTER 18V 200W |
2,001 | 184.28 |
RFQ |
Datasheet |
Box | GaN, SDI200G-U (200W) | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 18V | 11.1A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59 (1.50m) | IEC 320-C14 | - | 6.34 L x 2.13 W x 1.31 H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
SDI200G-24-UDC-P51AC/DC DESKTOP ADAPTER 24V 199W |
2,889 | 184.28 |
RFQ |
Datasheet |
Box | GaN, SDI200G-UD (200W) | Active | International | Desktop (Class II) | Cord | 100 ~ 240 VAC | 24V | 8.3A | 199 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59 (1.50m) | IEC 320-C8 | - | 5.91 L x 2.13 W x 1.30 H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
|
SDI200G-19.5-UC-P51AC/DC DESKTOP ADAPTER 19.5V 200W |
2,443 | 184.28 |
RFQ |
Datasheet |
Box | GaN, SDI200G-U (200W) | Active | International | Desktop (Class I) | Cord | 100 ~ 240 VAC | 19.5V | 10.2A | 200 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59 (1.50m) | IEC 320-C14 | - | 6.34 L x 2.13 W x 1.31 H (161.0mm x 54.2mm x 33.2mm) | EN, FCC, PSE, UL |
|
|
SDI200G-48-UDC-P51AC/DC DESKTOP ADAPTER 48V 202W |
3,549 | 184.28 |
RFQ |
Datasheet |
Box | GaN, SDI200G-UD (200W) | Active | International | Desktop (Class II) | Cord | 100 ~ 240 VAC | 48V | 4.2A | 202 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59 (1.50m) | IEC 320-C8 | - | 5.91 L x 2.13 W x 1.30 H (150.0mm x 54.0mm x 33.0mm) | EN, FCC, PSE, UL |
|
SDI300G-15-URC-P219AC/DC DESKTOP ADAPTER 15V 300W |
2,414 | 184.69 |
RFQ |
Datasheet |
Box | GaN, SDI300G-UR (300W) | Active | International | Desktop | Cord | 85 ~ 264 VAC | 15V | 20A | 300 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C18 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CE, cUL, cULus, FCC, UL |
|

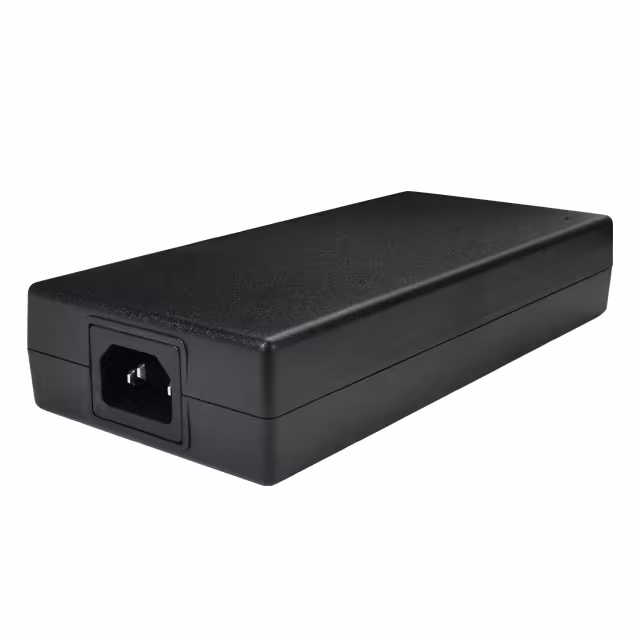

SDI300G-15-UC-P219AC/DC DESKTOP ADAPTER 15V 300W |
3,426 | 184.69 |
RFQ |
Datasheet |
Box | GaN, SDI300G-U (300W) | Active | International | Desktop | Cord | 85 ~ 264 VAC | 15V | 20A | 300 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C14 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CE, cUL, cULus, FCC, UL |
|
|
SDI300G-12-UC-P219AC/DC DESKTOP ADAPTER 12V 288W |
3,886 | 184.69 |
RFQ |
Datasheet |
Box | GaN, SDI300G-U (300W) | Active | International | Desktop | Cord | 85 ~ 264 VAC | 12V | 24A | 288 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C14 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CE, cUL, cULus, FCC, UL |
|
|
SDI300G-12-URC-P219AC/DC DESKTOP ADAPTER 12V 288W |
3,150 | 184.69 |
RFQ |
Datasheet |
Box | GaN, SDI300G-UR (300W) | Active | International | Desktop | Cord | 85 ~ 264 VAC | 12V | 24A | 288 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C18 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CE, cUL, cULus, FCC, UL |
|
SDI300G-15-U2-P219AC/DC DESKTOP ADAPTER 15V 300W |
2,095 | 184.97 |
RFQ |
Datasheet |
Box | GaN, SDI300G-U (300W) | Active | International | Desktop | Cord | 85 ~ 264 VAC | 15V | 20A | 300 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C14 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CE, cUL, cULus, FCC, UL |
|
SDI300G-15-UR2-P219AC/DC DESKTOP ADAPTER 15V 300W |
3,026 | 184.97 |
RFQ |
Datasheet |
Box | GaN, SDI300G-UR (300W) | Active | International | Desktop | Cord | 85 ~ 264 VAC | 15V | 20A | 300 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C18 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CE, cUL, cULus, FCC, UL |
|
|
SDI300G-12-U2-P219AC/DC DESKTOP ADAPTER 12V 288W |
2,842 | 184.97 |
RFQ |
Datasheet |
Box | GaN, SDI300G-U (300W) | Active | International | Desktop | Cord | 85 ~ 264 VAC | 12V | 24A | 288 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C14 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CE, cUL, cULus, FCC, UL |
|
|
SDI300G-12-UR2-P219AC/DC DESKTOP ADAPTER 12V 288W |
3,132 | 184.97 |
RFQ |
Datasheet |
Box | GaN, SDI300G-UR (300W) | Active | International | Desktop | Cord | 85 ~ 264 VAC | 12V | 24A | 288 W | 500mW (Max) | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39.4 (1.00m) | IEC 320-C18 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CE, cUL, cULus, FCC, UL |
|
SDM300G-56-UR-P219AC-DC, 56 VDC, 5.36 A, SW, C18 D |
3,136 | 199.95 |
RFQ |
Datasheet |
Box | SDM300G-UR (300W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 56V | - | - | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 47 (1.20m) | IEC 320-C18 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
|
|
SDM300G-56-U-P219AC-DC, 56 VDC, 5.36 A, SW, C14 D |
2,282 | 199.95 |
RFQ |
Datasheet |
Box | SDM300G-U (300W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 56V | - | - | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 72 (1.83m) | IEC 320-C14 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
|
SDM300G-19-U-P219AC-DC, 19 VDC, 15.79 A, SW, C14 |
2,004 | 202.69 |
RFQ |
Datasheet |
Box | SDM300G-U (300W) | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 19V | 15.79A | 300 W | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39 (1.00m) | IEC 320-C14 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
|
|
SDM300G-19-UR-P219AC-DC, 19 VDC, 15.79 A, SW, C18 |
3,172 | 202.69 |
RFQ |
Datasheet |
Box | SDM300G-UR (300W) | Active | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 19V | 15.79A | 300 W | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 39 (1.00m) | IEC 320-C18 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
|
|
SDM300G-48-UR2-P219AC-DC, 48 VDC, 6.25 A, SW, C18 D |
3,850 | 204.97 |
RFQ |
Datasheet |
Box | SDM300G-UR (300W) | Active | Europe | Desktop (Class II) | Cord | 100 ~ 240 VAC | 48V | 6.25A | 300 W | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 72 (1.83m) | IEC 320-C18 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
|
|
SDM300G-48-UC-P219AC-DC, 48 VDC, 6.25 A, SW, C14 D |
3,732 | 204.97 |
RFQ |
Datasheet |
Box | SDM300G-U (300W) | Active | North America | Desktop (Class I) | Cord | 100 ~ 240 VAC | 48V | 6.25A | 300 W | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 72 (1.83m) | IEC 320-C14 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
|
|
SDM300G-48-URC-P219AC-DC, 48 VDC, 6.25 A, SW, C18 D |
2,358 | 205.30 |
RFQ |
Datasheet |
Box | SDM300G-UR (300W) | Active | North America | Desktop (Class II) | Cord | 100 ~ 240 VAC | 48V | 6.25A | 300 W | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 72 (1.83m) | IEC 320-C18 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
|
|
SDM300G-48-U2-P219AC-DC, 48 VDC, 6.25 A, SW, C14 D |
2,457 | 205.30 |
RFQ |
Datasheet |
Box | SDM300G-U (300W) | Active | Europe | Desktop (Class I) | Cord | 100 ~ 240 VAC | 48V | 6.25A | 300 W | 500mW | - | Medical | Level VI | -20°C ~ 40°C | Rectangular, 6 Position | 72 (1.83m) | IEC 320-C14 | - | 7.20 L x 3.35 W x 1.38 H (183.0mm x 85.0mm x 35.0mm) | CB, CE, cURus, FCC, TUV, UKCA |
