| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Resistance | Tolerance | Power(Watts) | Composition | Features | TemperatureCoefficient | OperatingTemperature | Ratings | Size/Dimension | Height-Seated(Max) | NumberofTerminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSS2728JT47L0RES 0.047 OHM 5% 3W 2827 WIDE |
2,344 | 0.30 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 47 mOhms | ±5% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±15ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) | |
|
|
CSS2728JT4L00RES 0.004 OHM 5% 3W 2827 WIDE |
3,844 | 0.30 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 4 mOhms | ±5% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±25ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) | |
|
|
CSS2728JT6L00RES 0.006 OHM 5% 3W 2827 WIDE |
2,190 | 0.30 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 6 mOhms | ±5% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±25ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) | |
|
|
CSS2728JT7L00RES 0.007 OHM 5% 3W 2827 WIDE |
3,419 | 0.30 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 7 mOhms | ±5% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±25ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) | |
|
|
CSS2728JT8L00RES 0.008 OHM 5% 3W 2827 WIDE |
2,523 | 0.30 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 8 mOhms | ±5% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±15ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) | |
|
|
CSS2728JT9L00RES 0.009 OHM 5% 3W 2827 WIDE |
2,360 | 0.30 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 9 mOhms | ±5% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±15ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) | |
|
|
RNCF2010BTT3K01RES 3.01K OHM 0.1% 1/3W 2010 |
3,111 | 0.30 |
RFQ |
Datasheet |
2010 (5025 Metric) | Tape & Reel (TR) | RNCF | Active | 3.01 kOhms | ±0.1% | 0.333W, 1/3W | Thin Film | Automotive AEC-Q200 | ±10ppm/°C | -55°C ~ 155°C | AEC-Q200 | 0.193 L x 0.094 W (4.90mm x 2.40mm) | 0.026 (0.65mm) | |
,-1225.jpg)
|

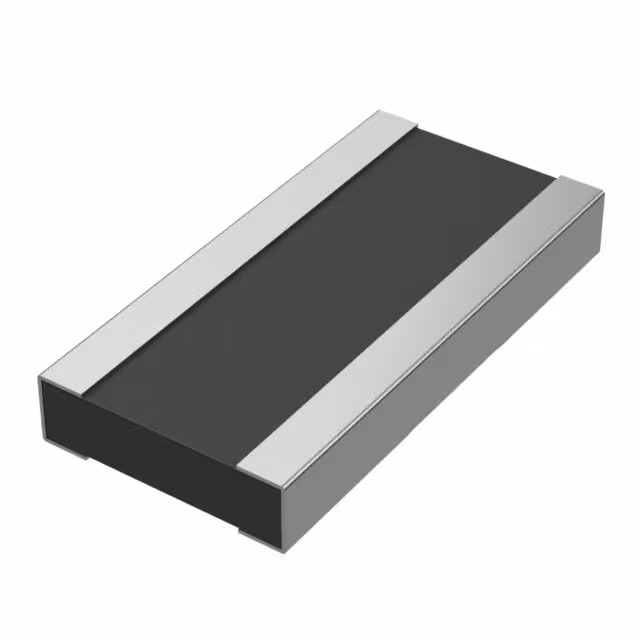

CSR1225FT10L0RES 0.01 OHM 1% 3W 2512 WIDE |
2,920 | 0.31 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | CSR | Active | 10 mOhms | ±1% | 3W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.041 (1.05mm) | |
|
|
CSR1225FT3L00RES 0.003 OHM 1% 3W 2512 WIDE |
2,276 | 0.31 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | CSR | Active | 3 mOhms | ±1% | 3W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.041 (1.05mm) | |
|
|
CSR1225FT4L00RES 0.004 OHM 1% 3W 2512 WIDE |
2,623 | 0.31 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | CSR | Active | 4 mOhms | ±1% | 3W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.041 (1.05mm) | |
|
|
CSR1225FT5L00RES 0.005 OHM 1% 3W 2512 WIDE |
2,284 | 0.31 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | CSR | Active | 5 mOhms | ±1% | 3W | Thick Film | Current Sense | ±300ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.041 (1.05mm) | |
|
|
CSR1225FT6L00RES 0.006 OHM 1% 3W 2512 WIDE |
3,550 | 0.31 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | CSR | Active | 6 mOhms | ±1% | 3W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.041 (1.05mm) | |
|
|
CSR1225FT7L00RES 0.007 OHM 1% 3W 2512 WIDE |
2,901 | 0.31 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | CSR | Active | 7 mOhms | ±1% | 3W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.041 (1.05mm) | |
|
|
CSR1225FT8L00RES 0.008 OHM 1% 3W 2512 WIDE |
3,855 | 0.31 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | CSR | Active | 8 mOhms | ±1% | 3W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.041 (1.05mm) | |
|
|
CSR1225FT9L00RES 0.009 OHM 1% 3W 2512 WIDE |
2,571 | 0.31 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | CSR | Active | 9 mOhms | ±1% | 3W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.041 (1.05mm) | |
|
|
CSR1225FK10L0RES 0.01 OHM 1% 3W 2512 WIDE |
3,103 | 0.31 |
RFQ |
Datasheet |
Wide 2512 (6432 Metric), 1225 | Tape & Reel (TR) | CSR | Active | 10 mOhms | ±1% | 3W | Thick Film | Current Sense | ±200ppm/°C | -55°C ~ 155°C | - | 0.122 L x 0.248 W (3.10mm x 6.30mm) | 0.041 (1.05mm) | |
|
CSS2728FT5L00RES 0.005 OHM 1% 3W 2827 WIDE |
2,882 | 0.31 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 5 mOhms | ±1% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±25ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) | |
|
|
CSS2728FT10L0RES 0.01 OHM 1% 3W 2827 WIDE |
3,099 | 0.31 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 10 mOhms | ±1% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±15ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) | |
|
|
CSS2728FT15L0RES 0.015 OHM 1% 3W 2827 WIDE |
2,851 | 0.31 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 15 mOhms | ±1% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±15ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) | |
|
|
CSS2728FT20L0RES 0.02 OHM 1% 3W 2827 WIDE |
2,957 | 0.31 |
RFQ |
Datasheet |
Wide 2827 (7067 Metric), 2728 | Tape & Reel (TR) | CSS | Active | 20 mOhms | ±1% | 3W | Metal Element | Automotive AEC-Q200, Current Sense | ±15ppm/°C | -55°C ~ 225°C | AEC-Q200 | 0.264 L x 0.283 W (6.71mm x 7.19mm) | 0.049 (1.24mm) |
