| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | TemperatureCoefficient | OperatingTemperature | Features | Ratings | Applications | FailureRate | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) | LeadSpacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDR32BX103BKUR\M500CAP CER SMP MLC HI-REL |
1,331 | 4.91 |
RFQ |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | Military, MIL-PRF-55681, CDR32 | Active | 10000 pF | ±10% | 100V | BX | -55°C ~ 125°C | - | - | General Purpose | R (0.01%) | Surface Mount, MLCC | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.051 (1.30mm) | - | |
-LD-Series.jpg)
|
LD103C106KAB2ACAP CER 10UF 25V X7R 1210 |
252 | 5.14 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | LD | Active | 10 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.126 L x 0.098 W (3.20mm x 2.50mm) | - | 0.110 (2.79mm) | - |
|

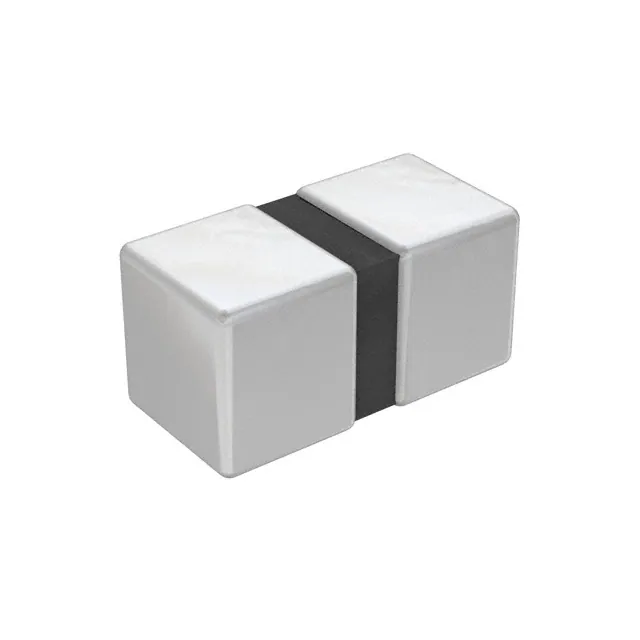

GX01ZD103PATDCAP CER 10000PF 10V X5R 0201 |
239 | 7.00 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | GX01 | Active | 10000 pF | 0%, +100% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.023 L x 0.012 W (0.58mm x 0.30mm) | - | 0.013 (0.33mm) | - |
|
|
GX01ZD103PATD-1000CAP CER 10000PF 10V X5R 0201 |
1,108 | 7.36 |
RFQ |
Datasheet |
0201 (0603 Metric) | Tape & Reel (TR),Cut Tape (CT) | GX01 | Active | 10000 pF | 0%, +100% | 10V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.023 L x 0.012 W (0.58mm x 0.30mm) | - | 0.013 (0.33mm) | - |
|
LD03YD225KAB2A\500CAP CER 2.2UF 16V X5R 0603 |
333 | 7.95 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | LD | Active | 2.2 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.063 L x 0.032 W (1.60mm x 0.81mm) | - | 0.037 (0.94mm) | - |
-0,90mm.jpg)
|
LD036D475KAB2ACAP CER 4.7UF 6.3V X5R 0603 |
1,532 | 6.76 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | LD | Active | 4.7 µF | ±10% | 6.3V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.063 L x 0.032 W (1.60mm x 0.81mm) | - | 0.035 (0.90mm) | - |
-2,54mm.jpg)
|

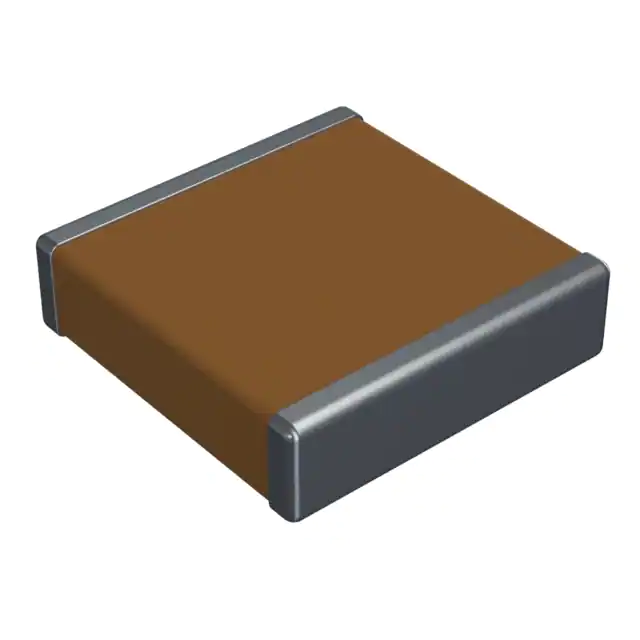

LD40CC564KAB3ACAP CER 0.56UF 630V X7R 3640 |
768 | 7.38 |
RFQ |
Datasheet |
3640 (9110 Metric) | Tape & Reel (TR) | LD | Active | 0.56 µF | ±10% | 630V | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Surface Mount, MLCC | 0.360 L x 0.402 W (9.14mm x 10.20mm) | - | 0.100 (2.54mm) | - |
-2,54mm.jpg)
|
AT143T105KA12ACAP CER 1UF 25V X7R 2225 |
374 | 9.82 |
RFQ |
Datasheet |
2225 (5763 Metric) | Tape & Reel (TR),Cut Tape (CT) | AT | Active | 1 µF | ±10% | 25V | X7R (VHT) | -55°C ~ 250°C | High Temperature | - | General Purpose | - | Surface Mount, MLCC | 0.225 L x 0.250 W (5.72mm x 6.35mm) | - | 0.100 (2.54mm) | - |
|
|
LD06ZC106KAB2ACAP CER SMD |
730 | 7.95 |
RFQ |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | LD | Active | 10 µF | ±10% | 10V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.070 (1.78mm) | - | |
-0,94mm.jpg)
|
LD10YD476KAB2ACAP CER SMD |
923 | 7.95 |
RFQ |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | LD | Active | 47 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.126 L x 0.098 W (3.20mm x 2.50mm) | - | - | - | |
-1,78mm-Q-Code.jpg)
|
LD063C106KAB2ACAP CER 10UF 25V 1206 |
2,306 | 7.95 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | LD | Active | 10 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.070 (1.78mm) | - |
|
|
LD063C105KAB2ACAP CER 1UF 25V X7R 1206 |
1,680 | 7.95 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | LD | Active | 1 µF | ±10% | 25V | X7R | -55°C ~ 125°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.070 (1.78mm) | - |
-1,40mm.jpg)
|
LD05YD106KAB2ACAP CER 10UF 16V X5R 0805 |
558 | 7.95 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | LD | Active | 10 µF | ±10% | 16V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.079 L x 0.049 W (2.01mm x 1.25mm) | - | 0.055 (1.40mm) | - |
|

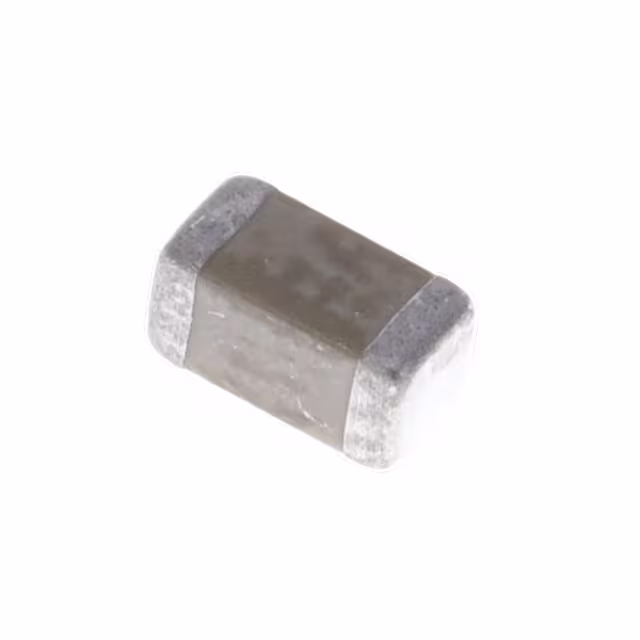

LD063D226KAB2ACAP CER SMD |
904 | 7.95 |
RFQ |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | LD | Active | 22 µF | ±10% | 25V | X5R | -55°C ~ 85°C | - | - | General Purpose | - | Surface Mount, MLCC | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.090 (2.29mm) | - | |
|
SV05AC224KAACAP CER .22UF RADIAL |
784 | 9.83 |
RFQ |
Datasheet |
Radial | Bulk | SV | Active | 0.22 µF | ±10% | 1000V (1kV) | X7R | -55°C ~ 125°C | High Voltage | - | General Purpose | - | Through Hole | 0.469 L x 0.200 W (11.90mm x 5.08mm) | 0.402 (10.20mm) | - | 0.375 (9.52mm) |
|
HQCCWA3R3DAT6ACAP CER 3.3PF 2.5KV NP0 2325 |
101 | 14.09 |
RFQ |
Datasheet |
2325 (5864 Metric) | Tray | Hi-Q® | Obsolete | 3.3 pF | ±0.5pF | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR, High Voltage | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0.230 L x 0.250 W (5.84mm x 6.35mm) | - | 0.145 (3.68mm) | - |
|
HQCEJA391JAT1ACAP CER 390PF 3.6KV C0G/NP0 3838 |
422 | 22.59 |
RFQ |
Datasheet |
3838 (9797 Metric) | Tape & Reel (TR),Cut Tape (CT) | Hi-Q® | Obsolete | 390 pF | ±5% | 3600V (3.6kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR, High Voltage | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0.380 L x 0.380 W (9.65mm x 9.65mm) | - | 0.170 (4.32mm) | - |
|
|
HQCCWM100GAH6ACAP CER 10PF 2.5KV P90 2325 |
374 | 19.56 |
RFQ |
Datasheet |
2325 (5864 Metric) | Tray | Hi-Q® | Obsolete | 10 pF | ±2% | 2500V (2.5kV) | P90 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR, High Voltage | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0.230 L x 0.250 W (5.84mm x 6.35mm) | - | 0.145 (3.68mm) | - |
|
|
HQCCWA150GAT6ACAP CER 15PF 2.5KV NP0 2325 |
538 | 20.29 |
RFQ |
Datasheet |
2325 (5864 Metric) | Tray | Hi-Q® | Obsolete | 15 pF | ±2% | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR, High Voltage | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0.230 L x 0.250 W (5.84mm x 6.35mm) | - | 0.145 (3.68mm) | - |
|
|

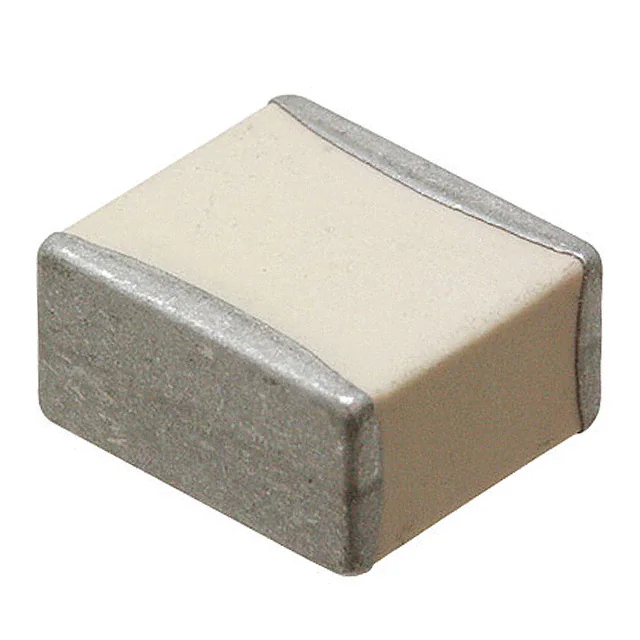

HQCCWA4R7CAT6ACAP CER 4.7PF 2.5KV NP0 2325 |
160 | 20.47 |
RFQ |
Datasheet |
2325 (5864 Metric) | Bulk | Hi-Q® | Obsolete | 4.7 pF | ±0.25pF | 2500V (2.5kV) | C0G, NP0 | -55°C ~ 125°C | High Q, Low Loss, Ultra Low ESR, High Voltage | - | RF, Microwave, High Frequency | - | Surface Mount, MLCC | 0.230 L x 0.250 W (5.84mm x 6.35mm) | - | 0.145 (3.68mm) | - |
